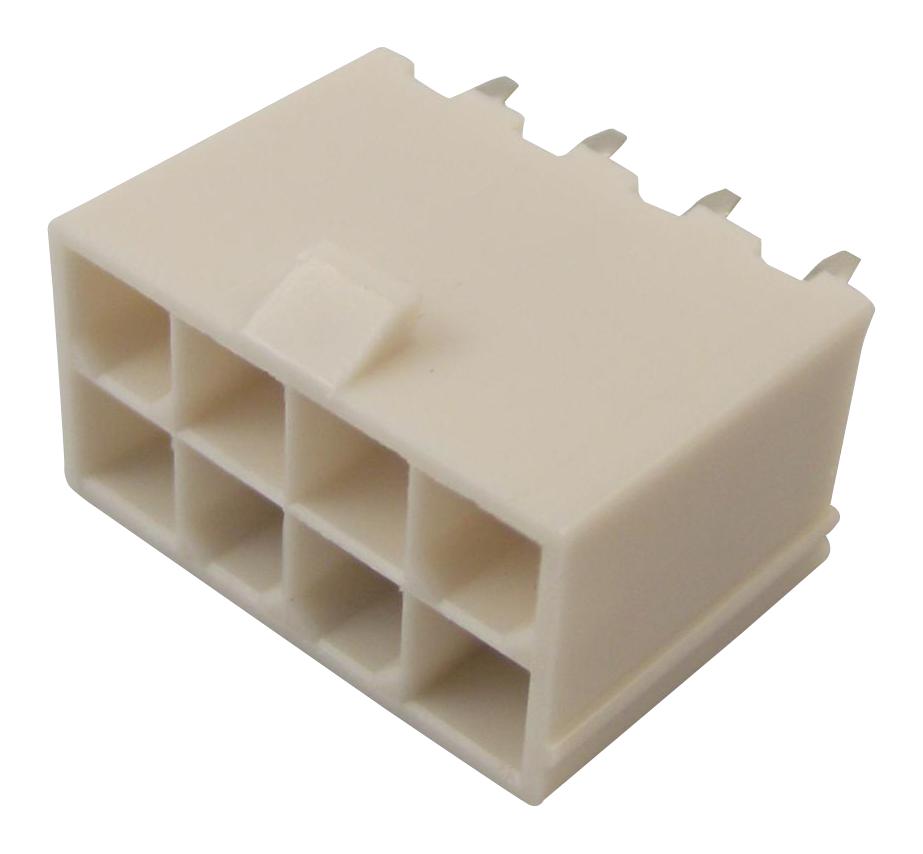

MOLEX 39289088 Mini-Fit Jr. Power Connector
The MOLEX 39-28-9088 Mini-Fit Jr. Power Connector is a robust and reliable solution for wire-to-board applications. This vertical header features 8 circuits arranged in a dual-row configuration, offering increased current handling capabilities. The gold plating on the mating contacts ensures low contact resistance and excellent signal integrity. Constructed with a durable nylon resin and brass material, this connector is designed for long-term performance in various industrial environments. It is compatible with standard Mini-Fit female terminals and offers a secure PCB lock for enhanced stability. For applications requiring higher amperage, consider using Mini-Fit Plus HCS terminals.
MOLEX 39289088 Mini-Fit Jr. Power Connector Specifications:
- Circuits (Loaded): 8
- Circuits (maximum): 8
- Color - Resin: Natural
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Number of Rows: 2
- Orientation: Vertical
- PC Tail Length: 3.50mm
- PCB Locator: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Fully
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Engineering Number: 5566-08B2GS-210
