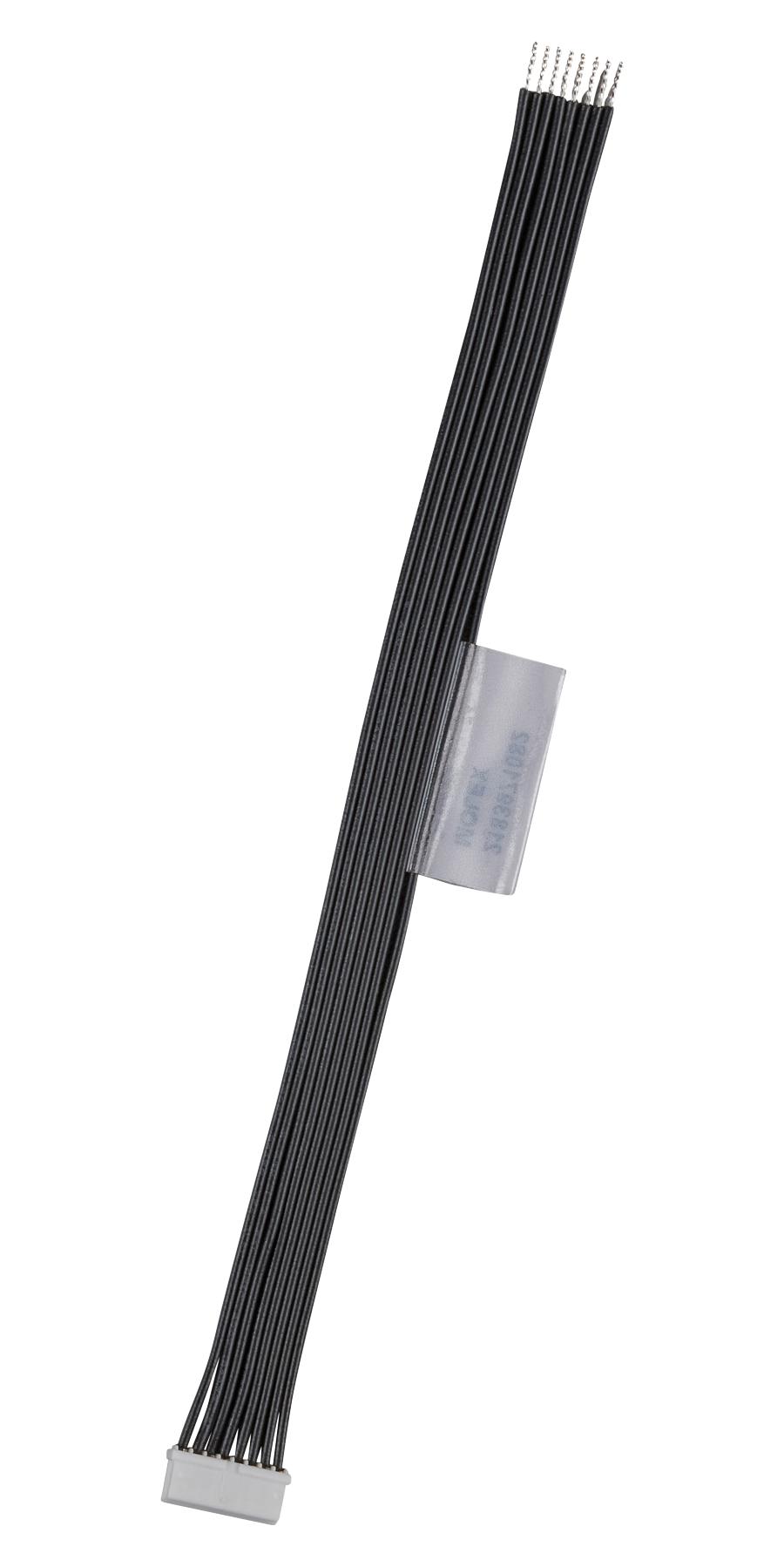

MOLEX 2183971082 Pico-SPOX Wire Assembly
The MOLEX 218397-1082 is a Pico-SPOX wire-to-board connector assembly designed for signal transmission in various applications. It boasts a compact 1.50mm pitch, 8 circuits, and a robust tin plating finish for reliable connectivity. This assembly is ideal for applications requiring secure and efficient wire-to-board connections, offering a maximum current capacity of 2.5A and a voltage rating of 250V. Its natural resin construction and phosphor bronze material ensure durability and performance.
MOLEX 2183971082 Pico-SPOX Wire Assembly Specifications:
- Product Family: Cable Assemblies
- Series: 218397
- Application: Signal, Wire-to-Board, Wire-to-Wire Assembly
- Configuration: Single Ended
- Connector to Connector: N/A
- Cable Length: 150.00mm
- Circuits Loaded: 8
- Color - Resin: Natural
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Resin: Nylon
- Net Weight: 3.270/g
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 1.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Wire Insulation Diameter: 0.95-1.20mm
- Wire Size AWG: 24
- Wire/Cable Type: UL 10002
- Current - Maximum per Contact: 2.5A
- Voltage - Maximum: 250V
- EU ELV: Not Relevant
- China RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- Reference - Drawing Numbers: Sales Drawing 2183971080-000
Buy the 218397-1082 MOLEX Pico-SPOX Wire Assembly | myMectronic
Purchase the MOLEX 218397-1082 Pico-SPOX Wire Assembly securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2183971082?
You can click on the BUY or RFQ button to purchase 2183971082 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183971082?
You can download the 2183971082 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183971082?
MOLEX
