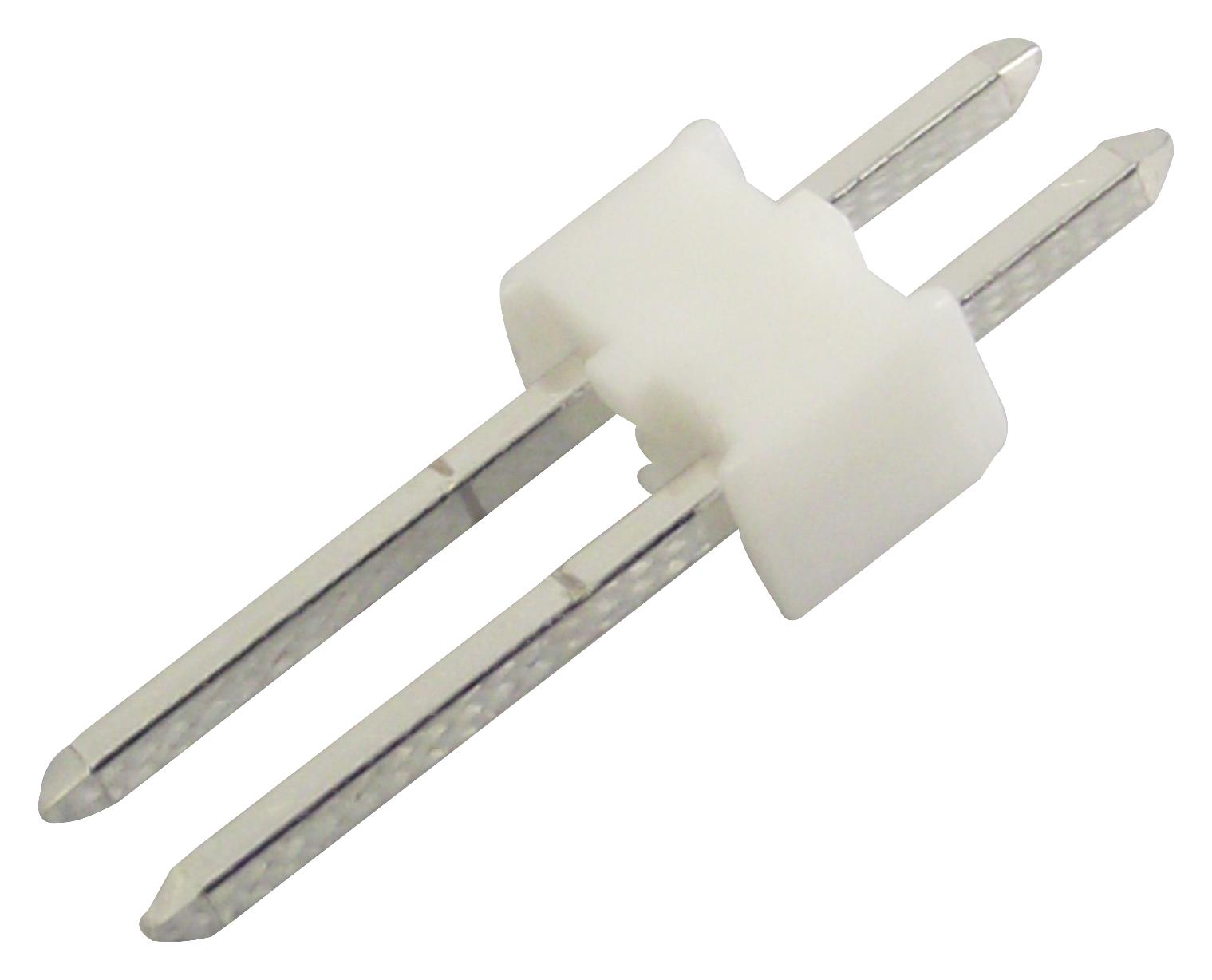

MOLEX 22032021 Electrical Header Connector
The product is a versatile and reliable electrical header connector with a 2.54mm pitch, designed for circuit connection in various electronic applications. It features multiple sizes from 2 to 28 circuits, rated for 250V and 4.0A current, with optional voids and various pin lengths. Constructed with durable red nylon housing UL 94V-0 and brass contacts plated for corrosion resistance, it operates efficiently within 0 to +75°C temperature range. Compatibility includes mating with several Molex series connectors, making it ideal for high-density PCB connections across industrial or consumer electronics.
MOLEX 22032021 Electrical Header Connector Specifications:
- Pitch: 2.54mm (.100")
- Number of circuits: 2 to 28
- Voltage: 250V
- Current: 4.0A
- Contact Resistance: 20mΩ max
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 50KΩ min
- Housing Material: Red nylon, UL 94V-0
- Contact Material: Brass, 0.64mm (.025") square
- Operating Temperature: 0°C to +75°C
- Compatible with: 2695, 4455, 6471, 7720, 7880 series
- Plating: See datasheet
- UL File No.: E29179
- CSA File No.: LR19980
- Mechanical: Vertical mounting
- Packaging: Bag
- Durability: Tin—25 cycles max, Gold—100 cycles max
Buy the Molex Series 4030 Electrical Header: 22032021
Enhance your electronic projects with this high-quality electrical header connector, featuring a 2.54mm pitch, 2-28 circuits, UL 94V-0 nylon housing, and brass contacts plated for durability. Designed for high-density PCB applications, it supports voltages up to 250V and currents of 4.0A, operating efficiently from 0°C to +75°C. Compatible with multiple Molex series connectors, this versatile component ensures secure and reliable connections. Purchase online today for dependable performance in industrial, consumer, or automotive electronics.
Buy Molex Series 4030 electrical header connector now and experience unmatched reliability and performance for your PCB connectivity needs.
