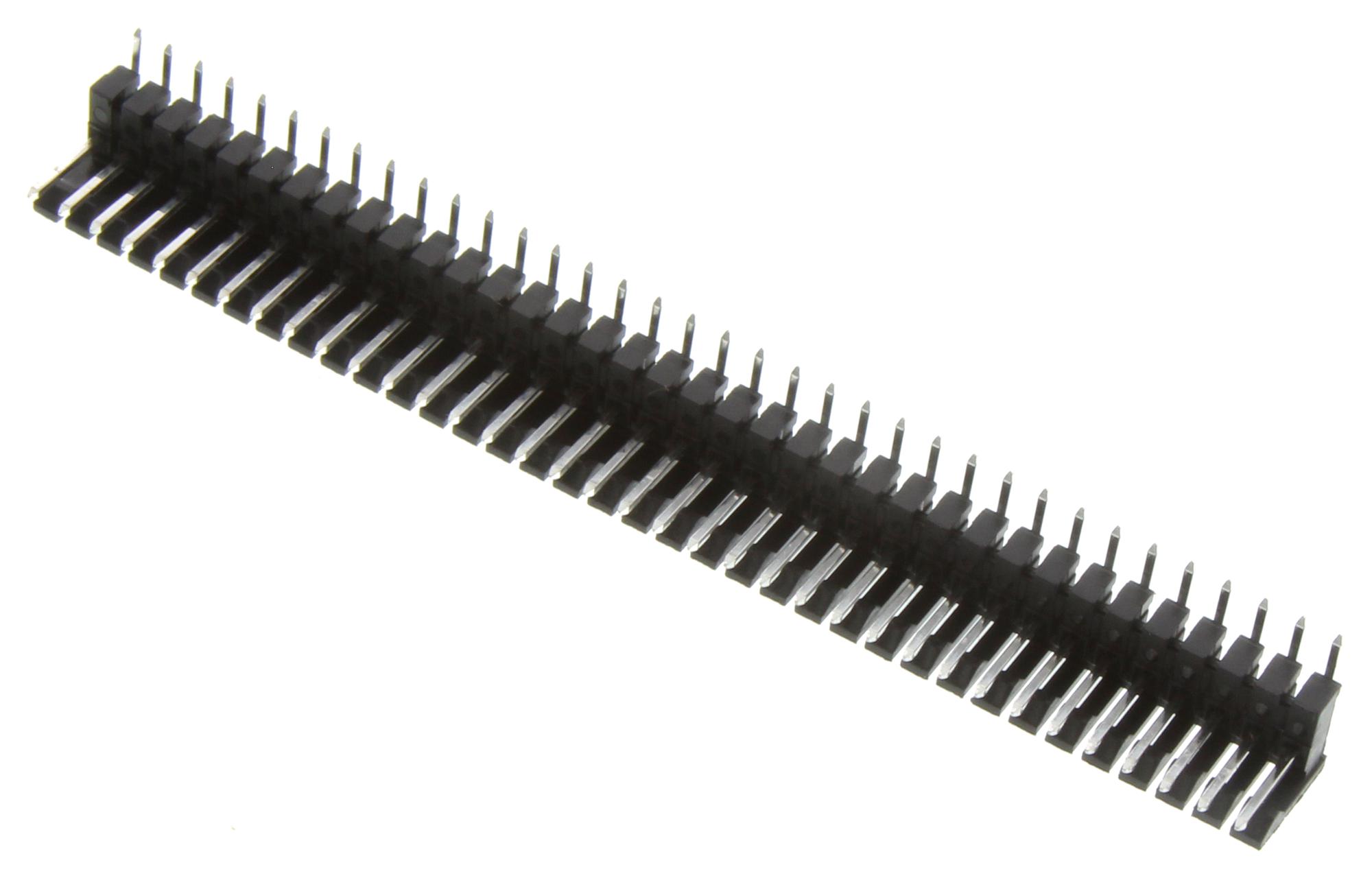

MOLEX 22281360 Signal Connector
The Molex KK 254 Breakaway Header is a right-angle wire-to-board connector with friction lock, featuring 36 circuits, tin plating, and a 4.0A current capacity. Designed for reliable contact and easy assembly, it supports up to 20 mating cycles, with a 2.54mm pitch interface. Made from durable plastics and metal, this connector operates within a temperature range of -40°C to +105°C. Its compact, polarized, and shrouded design makes it ideal for automation, control systems, and electronic device applications requiring secure, high-reliability connections.
MOLEX 22281360 Signal Connector Specifications:
- Series: KK 254
- Application: Signal, Wire-to-Board
- Number of Circuits: 36
- Color - Resin: None specified
- Durability (mating cycles max): Up to 20
- Flammability: UL and CSA certified
- Material - Metal: Not specified
- Material - Plating Mating: Tin (Sn)
- Material - Plating Termination: Tin (Sn)
- Material - Resin: Not specified
- Net Weight: Not specified
- Orientation: Right-Angle
- PC Tail Length: 1.60mm
- Pitch - Mating Interface: 2.54mm
- Operating Temperature Range: -40°C to +105°C
- Maximum Current per Contact: 4.0A
- Maximum Voltage: 500V
- Certification: UL, CSA, RoHS Compliant
- Plating Min - Mating: 2.540um
- Plating Min - Termination: 2.540um
- Shrouded: Yes
- Polarized: Yes
Buy the Molex Series KK 254 Signal Connector: 0022281360
Enhance your electronics with the Molex KK 254 right-angle header, featuring 36 circuits and tin plating for dependable connections in automation and control systems. Designed for durability, the connector supports up to 20 mating cycles, with a 2.54mm pitch interface suitable for various applications. Made from robust materials and certified UL and CSA, this shrouded, polarized connector ensures secure, corrosion-resistant, and high-performance electrical connections, simplifying assembly and maintenance for electronics engineers and technicians.
Order your Molex Series KK 254 connector today and ensure your electronic projects have the secure, reliable, and high-quality connections they need.
Frequently Asked Questions
Where can I buy MOLEX 22281360?
You can click on the BUY or RFQ button to purchase 22281360 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 22281360?
You can download the 22281360 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 22281360?
MOLEX
