MOLEX 5005920400 Wire-to-Wire Connector

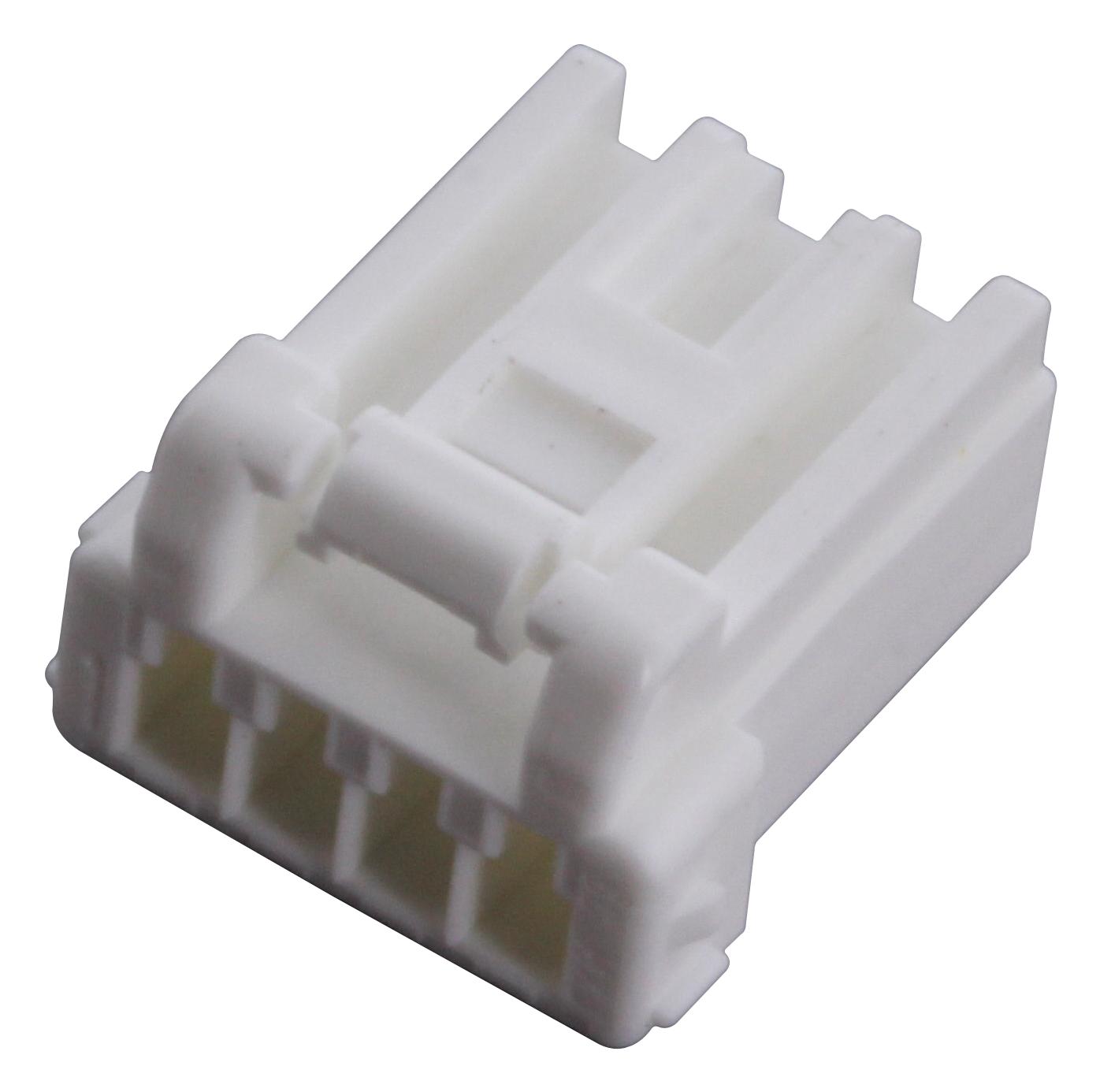

The 500592 series single-row, 2.50mm pitch CP-2.5 mini wire-to-wire receptacle housing offers a compact, secure, and reliable connection ideal for consumer appliances and industrial automation. Made from UL94V-0 rated PBT, it operates effectively from -40°C to +85°C, supporting up to 30 insertion cycles. The connection features a positive lock, terminal position assurance, and a tactile, audible click, ensuring proper engagement. It handles up to 250VAC and 3A current, providing space-saving, cost-effective wiring solutions with corrosion-resistant and RoHS compliant materials, suitable for various electronics projects.
MOLEX 5005920400 Wire-to-Wire Connector Specifications:
- Pitch: 2.50mm
- Maximum Circuits: 4
- Material: UL94V-0 rated PBT
- Temperature Range: -40°C to +85°C
- Voltage Rating: 250VAC
- Current Rating: 3A
- Insertion Cycles: Supports up to 30
- Color: Natural
- Gender: Receptacle
- RoHS Compliant: Yes
- Halogen-Free: No
- Packaging: Bag
- Locking Mechanism: Positive lock with tactile and audible feedback
- Application: Signal, wire-to-wire connection
Buy the Buy Molex CP-2.5 Mini Part Number 5005920400 Online
Enhance your electronic assembly with the Molex CP-2.5 mini wire-to-wire connector housing, featuring a compact design, positive lock, and reliable performance. Made from UL94V-0 rated PBT, it operates from -40°C to +85°C, supporting up to 30 insertion cycles. With a 2.50mm pitch, it handles up to 250VAC and 3A current, perfect for consumer appliances and industrial automation. This RoHS compliant, corrosion-resistant connector ensures secure connections with tactile and audible click feedback for efficient wiring and maintenance.
Order your Molex Series500592 5005920400 today and secure reliable, space-efficient electrical connections for your electronics projects.
