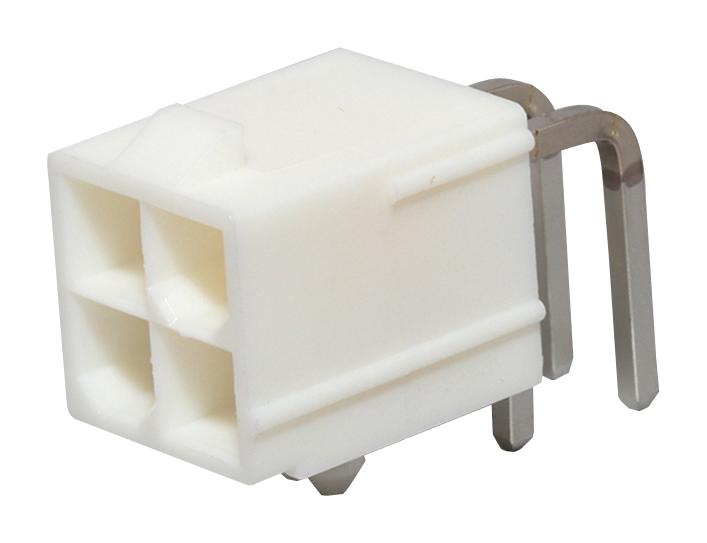

MOLEX 26013128 Power Connector
The Mini-Fit Jr. Power Connector Header is a reliable power distribution component designed for PCB applications. It features a dual-row, right-angle design with a snap-in plastic peg PCB lock, and supports up to four circuits. Constructed from durable PA Polyamide Nylon 6/6 with 94V-0 flammability rating, it is plated with gold for enhanced conductivity. Rated for 13A per circuit and 600V, this connector offers a robust connection solution for high-current applications, with a recommended operating temperature range from -40°C to +105°C and compatibility with 16 AWG wire crimp terminals.
MOLEX 26013128 Power Connector Specifications:
- Number of Circuits: 4
- Current per Circuit: 13A
- Voltage Rating: 600V
- Material - Resin: PA Polyamide Nylon 6/6, flammability: UL 94V-0
- Plating - Mating: 0.381 um Gold
- Plating - Termination: 2.540 um Tin
- Contact Material: Brass
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.78mm
- Pitch - Mating Interface: 4.20mm
- Temperature Range - Operating: -40°C to +105°C
- Solder Process Max Temperature: 240°C, duration: 5 seconds
- Surface Mount Compatible: No
- Crimp Terminal Crimped to 16 AWG Wire
- Packaging: Bag
- Max Mating Cycles: 30
- Color - Resin: Natural
- Guide to Mating Part: 5557 Mini-Fit Jr. Receptacle Housing
- Shrouded Fully
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Lock to Mating Part: Yes
- Number of Rows: 2
- Net Weight: 1.561 grams per connector
Buy the Molex Series 5569 Power Connector: 26013128
Enhance your electronic assembly with the Molex Power Connector designed for PCB power distribution. Featuring a durable nylon body, gold-plated contacts, and a right-angle design, it supports up to 13A per circuit at 600V. This reliable connector is ideal for high-current applications requiring secure connections, easy assembly, and long-term performance. Available for online purchase, ensure your projects meet the highest standards with this high-quality, RoHS-compliant, and UL-listed power connection solution.
Get Molex 26013128 today—built for high-current power distribution and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 26013128?
You can click on the BUY or RFQ button to purchase 26013128 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 26013128?
You can download the 26013128 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 26013128?
MOLEX
