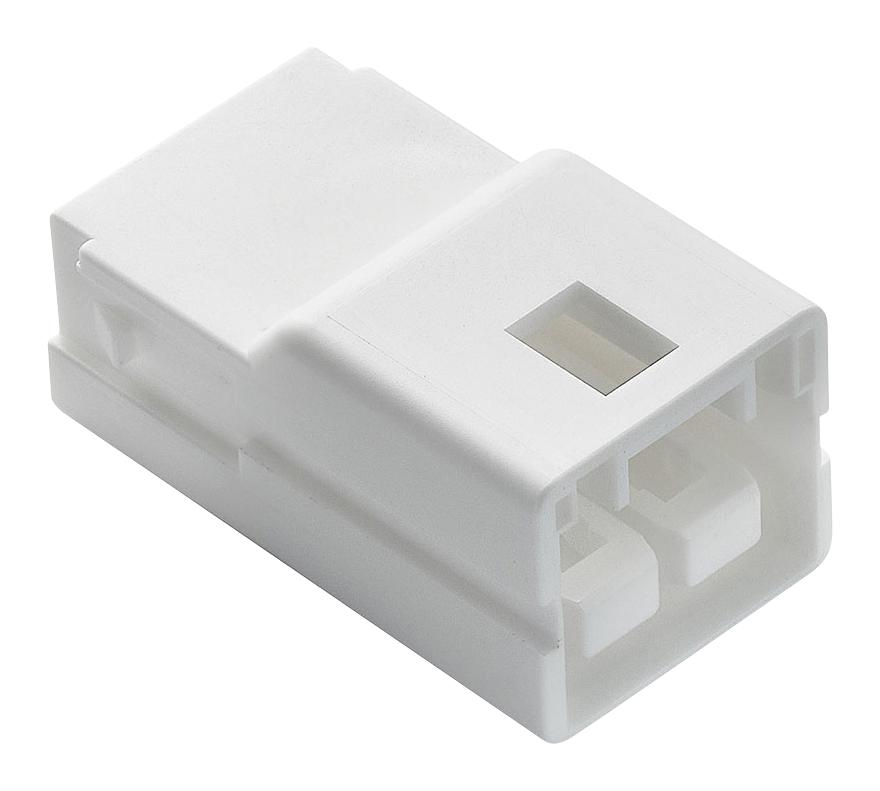

MOLEX 2069962211 Wire-to-Wire Connector
The 206996 series CP-4.5 wire-to-wire connectors are glow-wire capable and halogen-free, designed for safe electrical connections in consumer, industrial, and power applications. Made from UL94V-0 nylon, they support a maximum voltage of 600V and a current range of 2.0 to 10.0A. These reliable connectors feature locking mechanisms with keying, color-coding, and polarization for easy installation. Rated for up to 30 mating cycles and operating from -40°C to +120°C, they ensure safety and durability across various environments.
MOLEX 2069962211 Wire-to-Wire Connector Specifications:
- Material: UL94V-0 nylon
- Voltage Rating: 600V (AC/RMS and DC)
- Current Range: 2.0 to 10.0A
- Temperature Range: -40°C to +120°C
- Number of Mating Cycles: Up to 30
- Pitch: 4.5mm
- Number of Circuits: 2
- Color: Natural (White)
- Locking Mechanism: Positive lock, polarized, keyed
- Glow-wire Capable: Yes
- Halogen-Free: Yes
Buy the Molex Series CP-4.5 Wire-to-Wire Connector: 2069962211
Discover the reliable Molex Series CP-4.5 wire-to-wire connectors, designed with safety and durability in mind. These halogen-free, glow-wire capable connectors support 600V and 2-10A, making them ideal for industrial, consumer, and power applications. Featuring keyed, polarized locking mechanisms, they ensure fool-proof installation and reduced inventory costs. Rated for up to 30 mating cycles and operating from -40°C to +120°C, they meet global safety standards, providing long-lasting performance in demanding environments. Purchase online today for trusted quality and efficiency.
Order your Molex Series CP-4.5 wire-to-wire connector today and ensure reliable, safe electrical connections for your consumer and industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 2069962211?
You can click on the BUY or RFQ button to purchase 2069962211 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2069962211?
You can download the 2069962211 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2069962211?
MOLEX
