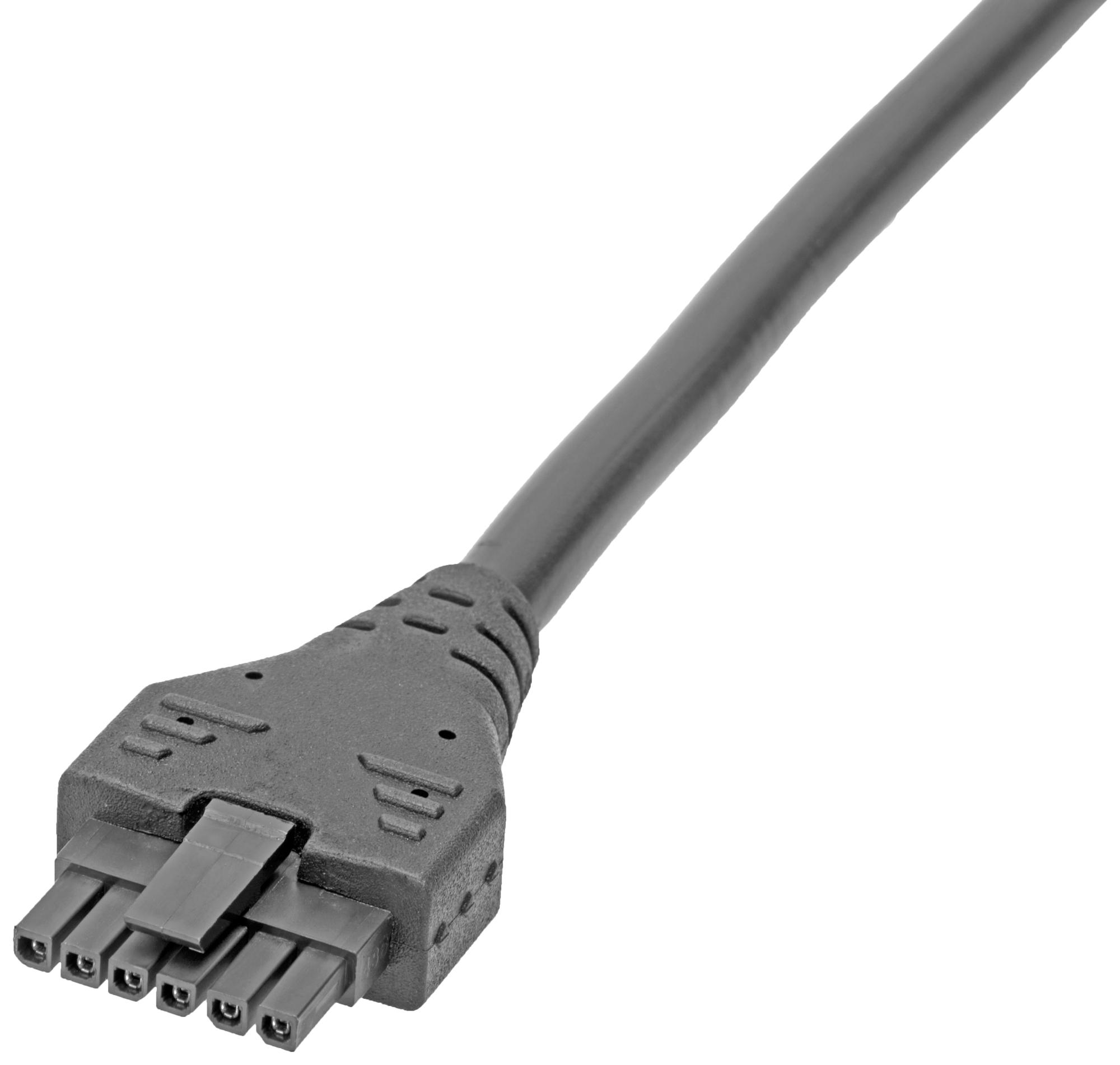

MOLEX 2147700610 Micro-Fit 3.0 Female-to-Female Cable
The Micro-Fit 3.0 female-to-female cable assembly features a single-row design with secure locking tangs and polarized mating geometry to prevent mis-mating. Its overmolded strain relief reduces mechanical stress on wires and terminals, ensuring durability. Rated for 300V and 8.5A per contact, it offers at least 30 mating cycles with crimp or compression terminations. Constructed with a black nylon housing, phosphor bronze terminals with tin plating, and UL 2464 wire, it is ideal for rugged signal connections in consumer, data, and computing applications, operating from -20°C to +80°C.
MOLEX 2147700610 Micro-Fit 3.0 Female-to-Female Cable Specifications:
- Connector Type: Micro-Fit 3.0 Female-to-Female
- Number of Circuits: 6
- Cable Length: 1.0 meters
- Color: Black
- Housing Material: Nylon
- Terminal Material: Phosphor Bronze
- Terminal Plating: Tin
- Voltage Rating: 300V AC/DC
- Current per Contact: 8.5A
- Operating Temperature Range: -20°C to +80°C
- Durability: Minimum 30 mating cycles
- Termination Style: Crimp or Compression
- Flammability Rating: UL 94V-0
- Overmolded strain relief reduces mechanical stress
- Polarized mating geometry prevents mis-mating
- Locking tangs ensure secure connection
- Reference Drawing Number: 193264653645
Buy the Molex Series Micro-Fit 3.0 Female-to-Female Cable: 2147700610
Purchase the Molex Micro-Fit 3.0 Female-to-Female Cable Assembly online today to ensure high-quality, durable connections suitable for demanding electronic applications. Featuring a 1-meter length, secure locking, polarized design, and overmolded strain relief, this assembly withstands harsh conditions with a temperature range of -20°C to +80°C, rated for 300V and 8.5A per contact. Its UL 94V-0 flammability rating and minimum of 30 mating cycles provide excellent reliability in consumer, data, and computing environments. Easily integrated into your system for efficient and secure performance.
Buy Molex 2147700610 now and experience unmatched reliability and performance in rugged signal connections.
Frequently Asked Questions
Where can I buy MOLEX 2147700610?
You can click on the BUY or RFQ button to purchase 2147700610 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147700610?
You can download the 2147700610 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147700610?
MOLEX
