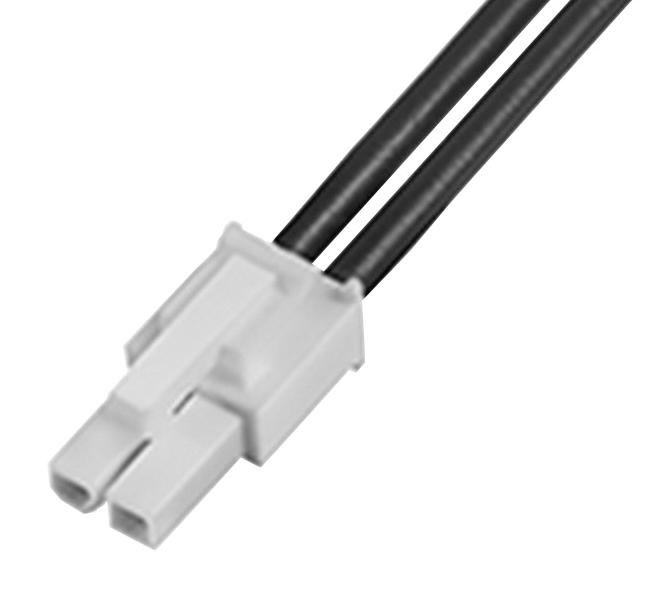

MOLEX 2153232023 Mini-Fit Jr. Cable Assembly
The MOLEX 215323-2023 is a Mini-Fit Jr. male-to-pigtail cable assembly designed for power and wire-to-wire applications. It boasts a robust construction with a black nylon resin housing, brass material, and gold/tin plating for optimal conductivity and durability. This assembly is ideal for applications requiring secure and reliable power connections, such as industrial equipment, automotive systems, and consumer electronics.
Authorized Distributors
Source:Mouser Electronics
Part No:215323-2023
Stock:24
Inv Date:05-30-2026
Price: Unit price: $4.1
Buy/RFQ:
Source:RS Americas, Inc
Part No:215323-2023
Stock:0
Inv Date:05-29-2026
Price: Unit price: $3.36
Buy/RFQ:
MOLEX 2153232023 Mini-Fit Jr. Cable Assembly Specifications:
- Application: Power, Wire-to-Wire Assembly
- Configuration: Single Ended
- Connector Type: Mini-Fit Jr.-to-Pigtail
- Cable Length: 600.00mm
- Circuits Loaded: 2
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Gold (Au)
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 4.20mm
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.032µm
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Wire Cable Type: UL 1015
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Mates With: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit TPA2 Cable Assembly 145135
Buy the 215323-2023 MOLEX Mini-Fit Jr. Cable Assembly | myMectronic
Purchase the MOLEX 215323-2023 Mini-Fit Jr. Cable Assembly securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153232023?
You can click on the BUY or RFQ button to purchase 2153232023 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153232023?
You can download the 2153232023 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153232023?
MOLEX
