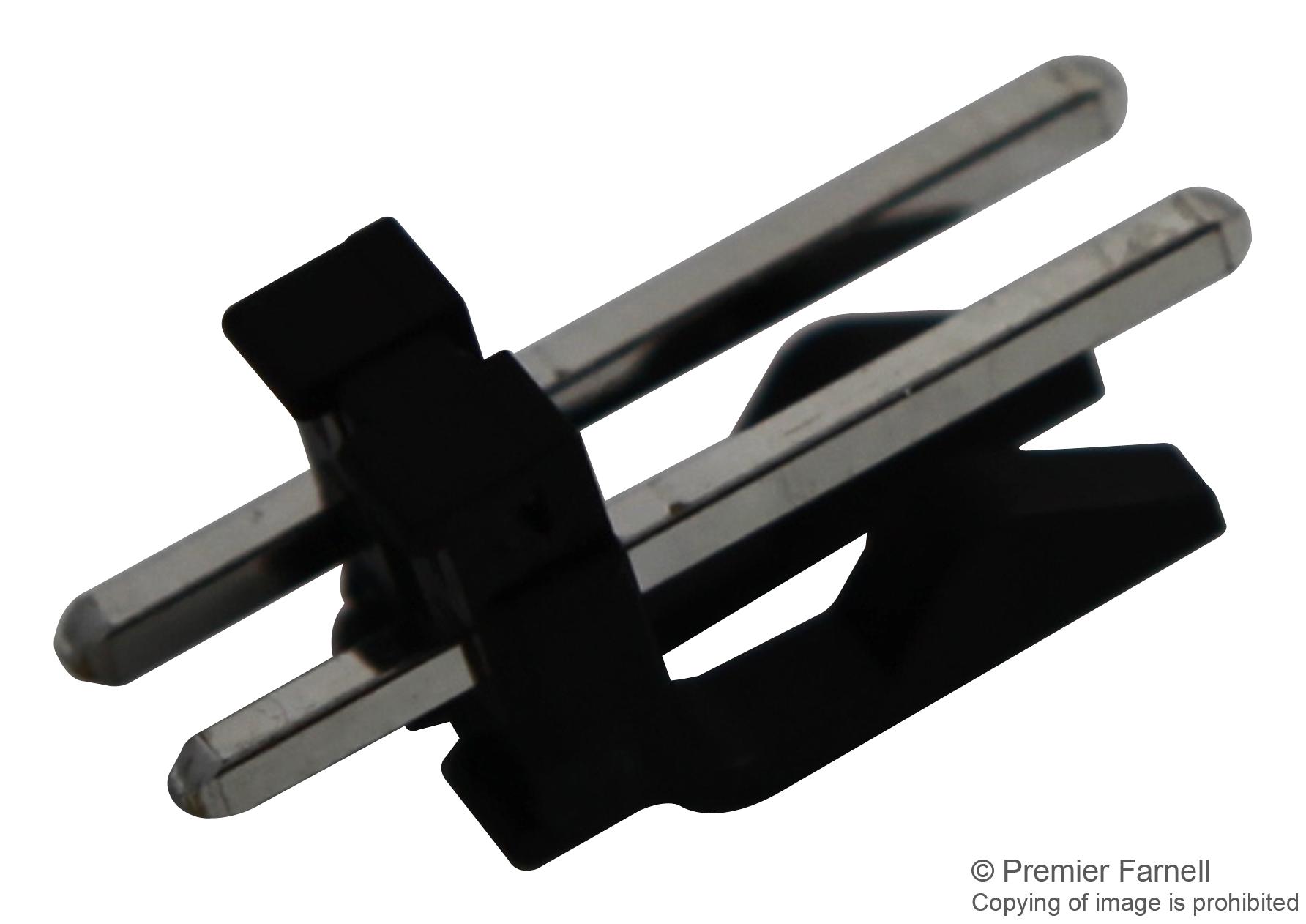

MOLEX 26481095 Power Header
The KK 396 Breakaway Header is a reliable power and wire-to-board connector designed for industrial applications. With a vertical, square pin design, friction lock, and tin plating, it offers durability across up to 25 mating cycles. Capable of withstanding temperatures from -55°C to +105°C, it supports a maximum current of 7.0A per contact and a voltage of 250V. Made from high-quality brass and polyester resin, it features 9 circuits, a 3.96mm pitch, and is RoHS compliant, suitable for compact, high-reliability electronic assemblies.
MOLEX 26481095 Power Header Specifications:
- Number of Circuits: 9
- Color - Resin: Black
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 3.327 grams
- Orientation: Vertical
- Pitch - Mating Interface: 3.96mm
- Pitch - Termination Interface: 3.96mm
- Temperature Range - Operating: -55°C to +105°C
- Max. Current per Contact: 7.0A
- Voltage - Max: 250V
- Durability: Up to 25 mating cycles
- Compliance: RoHS, UL, CSA
- Structural Features: Friction lock, square pin, breakaway design
- Connector Type: Power, Wire-to-Board
Buy the Molex 26481095 – Reliable Power Connector for Industrial Applications
Order the Molex 26481095 Power Header online today to enjoy a top-grade electrical connector designed for industrial use. Featuring 9 circuits, 250V capacity, and 7A current per contact, this sturdy connector ensures secure connections in various electronic systems. Its vertical, square-pin design with friction lock provides easy installation and reliable mating. Made from high-quality brass and polyester, it withstands temperatures from -55°C to +105°C. RoHS compliant, UL, and CSA certified, it guarantees performance, safety, and compliance for your manufacturing needs.
Buy Molex 26481095 now and enhance your industrial electronic assemblies with a durable, high-quality power connector featuring a 3.96mm pitch and reliable performance.
Frequently Asked Questions
Where can I buy MOLEX 26481095?
You can click on the BUY or RFQ button to purchase 26481095 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 26481095?
You can download the 26481095 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 26481095?
MOLEX
