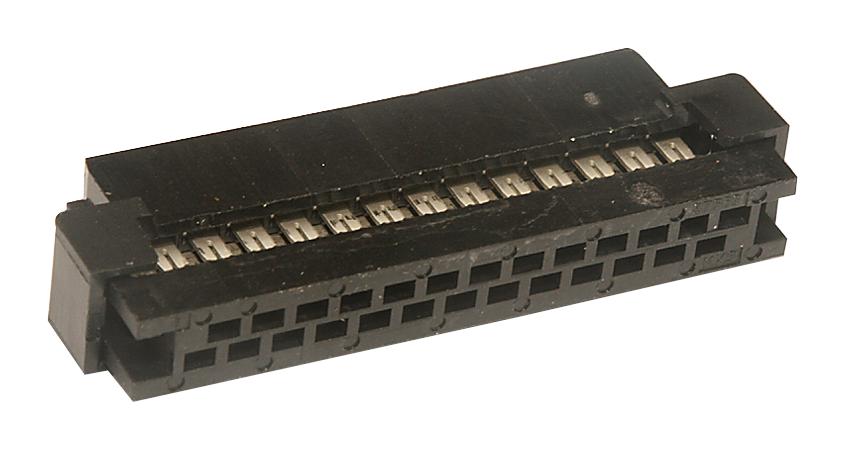

MOLEX 875683063 Cable Connector
The Milli-Grid Cable-to-Board Receptacle is a durable, eco-friendly connector system with dual rows, 30 circuits, and gold selective plating, suitable for industrial and electronic applications. Designed without polarization key and locking friction ramp, it provides reliable mating with high mating cycles, operating from -20°C to +85°C. Made from copper alloy with polyester resin, it offers a maximum current of 1.0A and voltage of 125V. Compliant with RoHS and UL standards, this connector ensures secure, low-profile connections in complex electronic assemblies.
MOLEX 875683063 Cable Connector Specifications:
- Number of Circuits: 30
- Gender: Female
- Color - Resin: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Resin: Polyester
- Pitch - Mating Interface: 2.00mm
- Operating Temperature Range: -20°C to +85°C
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V
- Durability (mating cycles max): 100
- Flammability: 94V-0
- Net Weight: 1.701g
- Packaging Type: Tray
- Panel Mount: No
- Stackable: No
- Lock to Mating Part: None
- RoHS Compliance: Yes
- UL and CSA Certified
Buy the Molex 0875683063 – Reliable Cable-to-Board Connector for Industrial Applications
Discover the reliable Molex Cable Connector designed for demanding industrial and electronic applications. With 30 circuits, gold-plated contacts, and robust construction, this connector ensures secure, corrosion-resistant connections. It operates within a temperature range of -20°C to +85°C and is compliant with RoHS and UL standards, making it safe and environmentally friendly. Easy to install, this connector is ideal for PCB and cable assemblies requiring high durability, multiple mating cycles, and high performance in a compact form factor.
Buy Molex 0875683063 now and experience unmatched reliability and high-performance connections in your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 875683063?
You can click on the BUY or RFQ button to purchase 875683063 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 875683063?
You can download the 875683063 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 875683063?
MOLEX
