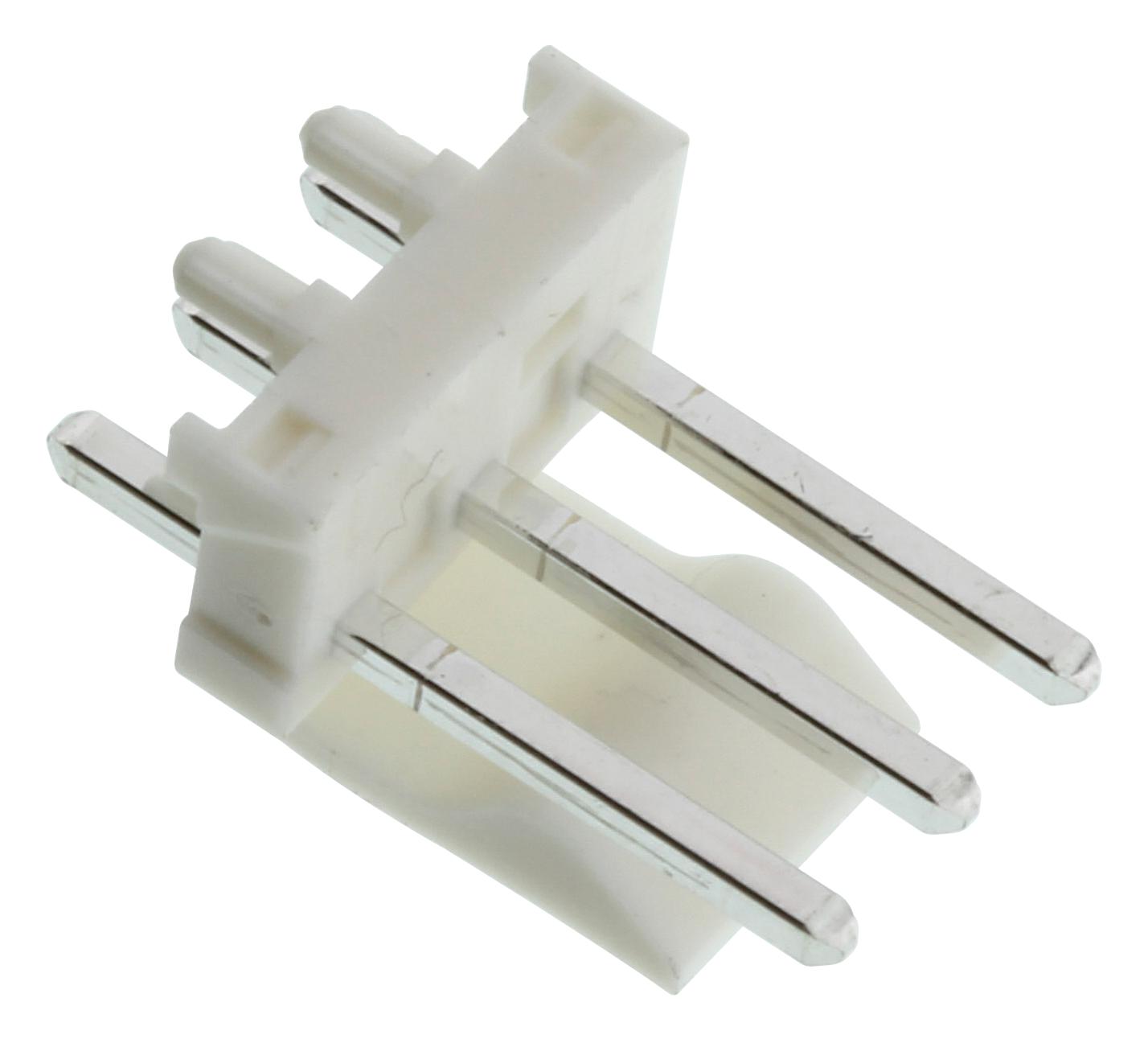

MOLEX 26644030 KK 396 Header
The MOLEX 26-64-4030 KK 396 header is a versatile interconnect solution for power and wire-to-board applications. This vertical header utilizes a friction lock mechanism and press-fit plastic peg PCB design, ensuring a secure and reliable connection. With tin plating, it offers excellent solderability and corrosion resistance. The header supports up to 3 circuits and is designed for easy integration into PCB assemblies. It's a robust and dependable choice for a wide range of industrial and commercial applications.
MOLEX 26644030 KK 396 Header Specifications:
- product_family: PCB Headers
- series: 42491
- application: Power, Wire-to-Board
- circuits_loaded: 3
- circuits_maximum: 3
- durability_mating_cycles: 25
- flammability: 94V-0
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.56mm
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm
- pitch_mating_interface: 3.96mm
- plating_min_mating: 5.080µm
- plating_min_termination: 5.080µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Partial
- stackable: Yes
- temperature_range_operating: See Product Specification
- termination_interface_style: Through Hole
- current_max_per_contact: 7.0A
- voltage_max: 250V
- duration_at_max_process_temperature_seconds: 005
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_c: 235
- engineering_number: 42491-0003
