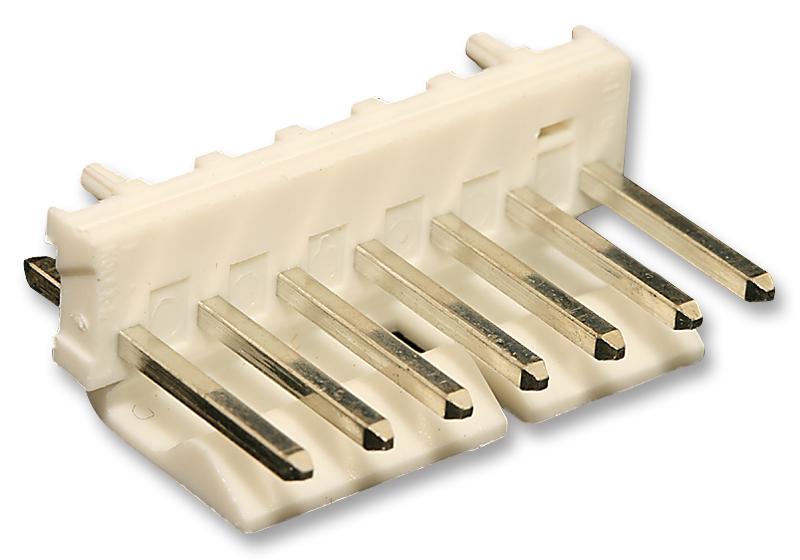

MOLEX 26644120 KK 396 Header
The MOLEX 26-64-4120 KK 396 header is a versatile interconnect solution for power and signal transmission in wire-to-board applications. Designed with a vertical orientation and friction lock, this header provides a secure and reliable connection. It accommodates up to 12 circuits and features tin plating for enhanced conductivity and corrosion resistance. The header's press-fit plastic pegs ensure easy and precise mounting onto the PCB, making it ideal for a wide range of industrial and commercial applications. It is part of the KK Interconnect System, known for its robust design and ease of use.
MOLEX 26644120 KK 396 Header Specifications:
- overview: KK Interconnect System
- application: Power, Wire-to-Board
- circuits_loaded: 12
- circuits_maximum: 12
- durability_mating_cycles: 25
- flammability: 94V-0
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.56mm
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm
- packaging_type: Bag
- pitch_mating_interface: 3.96mm
- plating_min_mating: 5.080µm
- plating_min_termination: 5.080µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Partial
- stackable: Yes
- temperature_range_operating: See Product Specification
- termination_interface_style: Through Hole
- current_max_per_contact: 7.0A
- voltage_max: 250V
- lead_free_process_capability_wave_max_cycles: 001
- process_temperature_max_c: 235
- engineering_number: 42491-0012
Buy the 26-64-4120 MOLEX KK 396 Header | myMectronic
Purchase the genuine MOLEX 26-64-4120 KK 396 Header securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 26644120?
You can click on the BUY or RFQ button to purchase 26644120 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 26644120?
You can download the 26644120 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 26644120?
MOLEX
