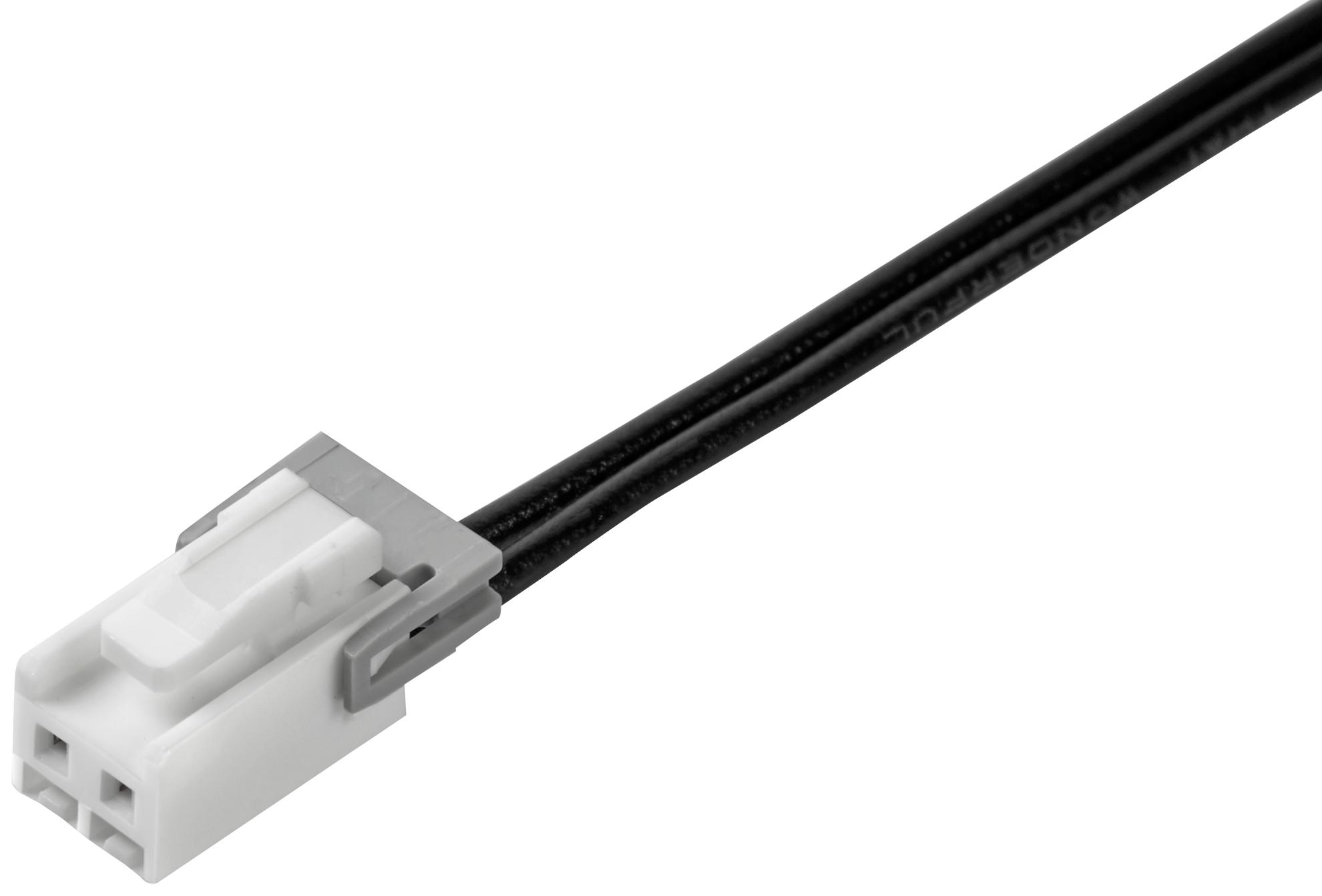

MOLEX 151370201 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0201 is a Mini-Lock wire-to-board connector assembly, part of the 15137 series. This connector offers a robust and reliable connection solution for signal transmission in wire-to-board applications. With a 2.50mm pitch and a female-female configuration, it's ideal for connecting two boards or devices. The 100mm cable length provides flexibility in routing and placement. Constructed with copper alloy and polyester materials, and featuring matte tin plating for both mating and termination interfaces, this connector ensures excellent conductivity and durability. It is RoHS compliant and designed for applications requiring a compact and secure connection.
MOLEX 151370201 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- product_family: Cable Assemblies
- application: Signal, Wire-to-Board Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Lock-to-Mini-Lock
- cable_length: 100.00mm
- circuits_loaded: 2
- color_resin: Natural
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin (0.889µm)
- material_plating_termination: Matte Tin
- material_resin: Polyester
- packaging_type: Bag
- pitch_mating_interface: 2.50mm
- termination_interface_style: Crimp or Compression
- wire_size_awg: 22
- wire_cable_type: UL 1061
- voltage_max: 250V AC (RMS)/DC
- sales_drawing: 151370200-000
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
