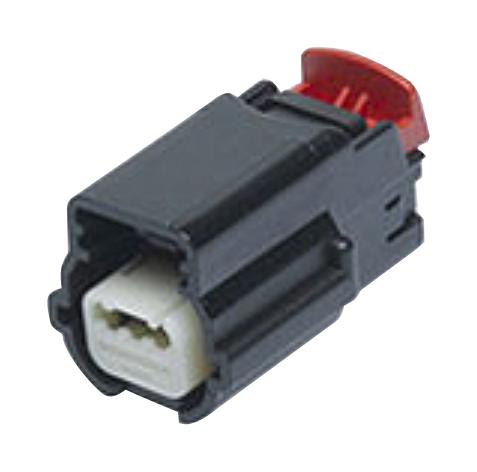

MOLEX 314033110 Sealed Power Connector
The 2.54mm MX64 Sealed Single Row Crimp Housing features a black resin housing designed for power and wire-to-board applications. It supports up to 3 circuits with key A polarization and includes a CPA lock for secure connection. Made from high-quality PBT material, it operates reliably within a temperature range of -40° to +125°C. Compatible with Molex MX64 terminals, this connector ensures robust and sealed connections suitable for various electronic assemblies, offering RoHS and REACH compliance for environmentally safe usage.
MOLEX 314033110 Sealed Power Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Color - Resin: Black
- Material - Resin: PBT
- Circuits (maximum): 3
- Gender: Receptacle
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Glow-Wire Capable: No
- Temperature Range - Operating: -40°C to +125°C
- Net Weight: 5.142 grams
- Packaging Type: Bag
- Reference - Drawing Numbers: PS-31402-000-001
- RoHS and REACH compliant, halogen-free, suitable for power applications
- Use With: Molex MX64 terminals 33467, 33468
- Status: Active, with extended lead times due to high demand
Buy the Buy Molex MX64 Sealed Connectors Part Number 0314033110 Online
Purchase the Molex sealed power connector online today to ensure a secure, reliable, and environmentally compliant connection. With a 2.54mm pitch and supporting up to three circuits, this connector is ideal for power applications, wire-to-board assemblies, and sealed environments. Made from durable PBT material, it operates across a broad temperature range from -40°C to +125°C. Compatible with Molex MX64 terminals, this connector offers easy installation, RoHS and REACH compliance, and features a secure CPA lock and polarization for reliable mating. Stock is limited due to high demand, so order now and ensure your project’s success.
Buy Molex 0314033110 now and experience unmatched reliability and sealed power connections for your electronic projects.
