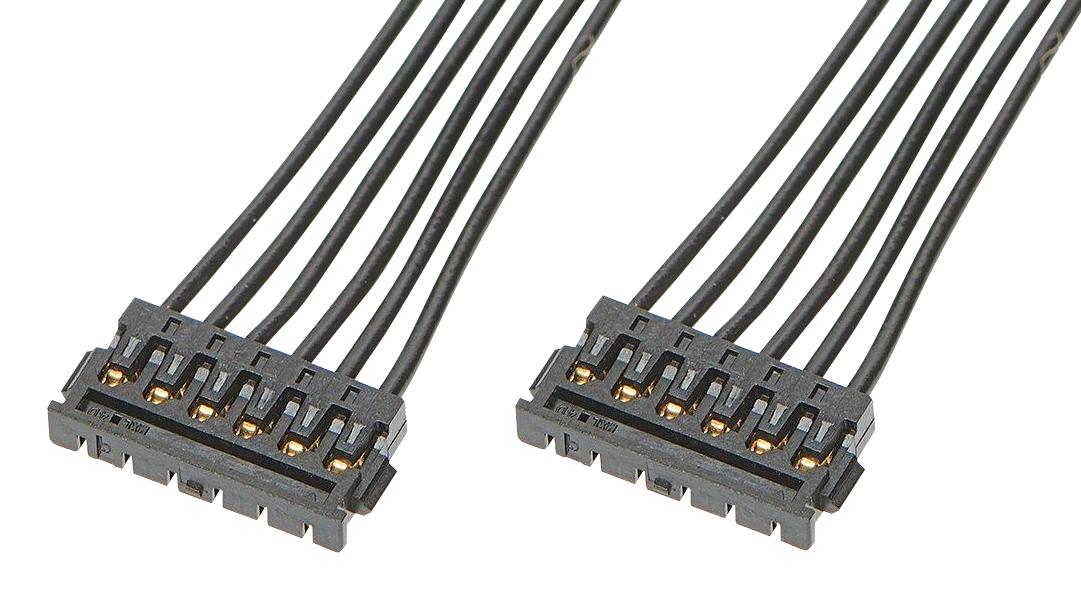

MOLEX 369200600 Wire-to-Board Connector
The Pico-EZmate cable assembly featuring a 1.20mm pitch and a single row configuration offers reliable connectivity for wiring harnesses and modular systems. Designed with black, overmolded insulation, it supports 6 circuits, with durable gold-plated copper contacts ensuring excellent electrical performance. The assembly measures 50mm in length and is compatible with PicoEZmate headers, making it ideal for compact electronic devices requiring robust, easy-to-assemble wire-to-board connections. Compliant with RoHS and UL standards, this cable assembly delivers quality and safety for various applications.
MOLEX 369200600 Wire-to-Board Connector Specifications:
- Assembly Type: Discrete wire assembly
- Connector Configuration: Female-Female, connector to connector
- Overmolded: Yes
- Pitch: 1.20mm
- Number of Circuits: 6
- Cable Length: 50.00mm
- Color: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 1.54 grams
- Number of Rows: Single
- Packaging Type: Bag
- Wire Insulation Diameter: 0.100 inches
- Wire Size AWG: 28
- Wire/Cable Type: Discrete wire
- Current - Max per Contact: 50V AC (RMS)/DC
- Voltage - Max: 50V AC/DC
- Reference - Drawing Numbers: 369200600-000
- Certification: UL 1571, RoHS, China RoHS, REACH SVHC compliant
Buy the Buy Molex Cable Assembly Part Number 369200600 Online
Secure your electronic assemblies with the Molex Pico-EZmate cable assembly featuring a 1.20mm pitch, 6 circuits, and gold-plated contacts for superior performance. Its black overmolded insulation enhances durability, while the 50mm length is ideal for compact systems. Fully RoHS and UL compliant, this connector ensures safety and reliability in various electronic applications. Easy to install, it supports efficient wiring harness connections, making it the perfect choice for reliable, high-quality electronic device assembly. Order online today for fast delivery and consistent quality.
Buy Molex 369200600 now and experience unmatched reliability with robust 6-circuit wire-to-board connections in compact designs.
