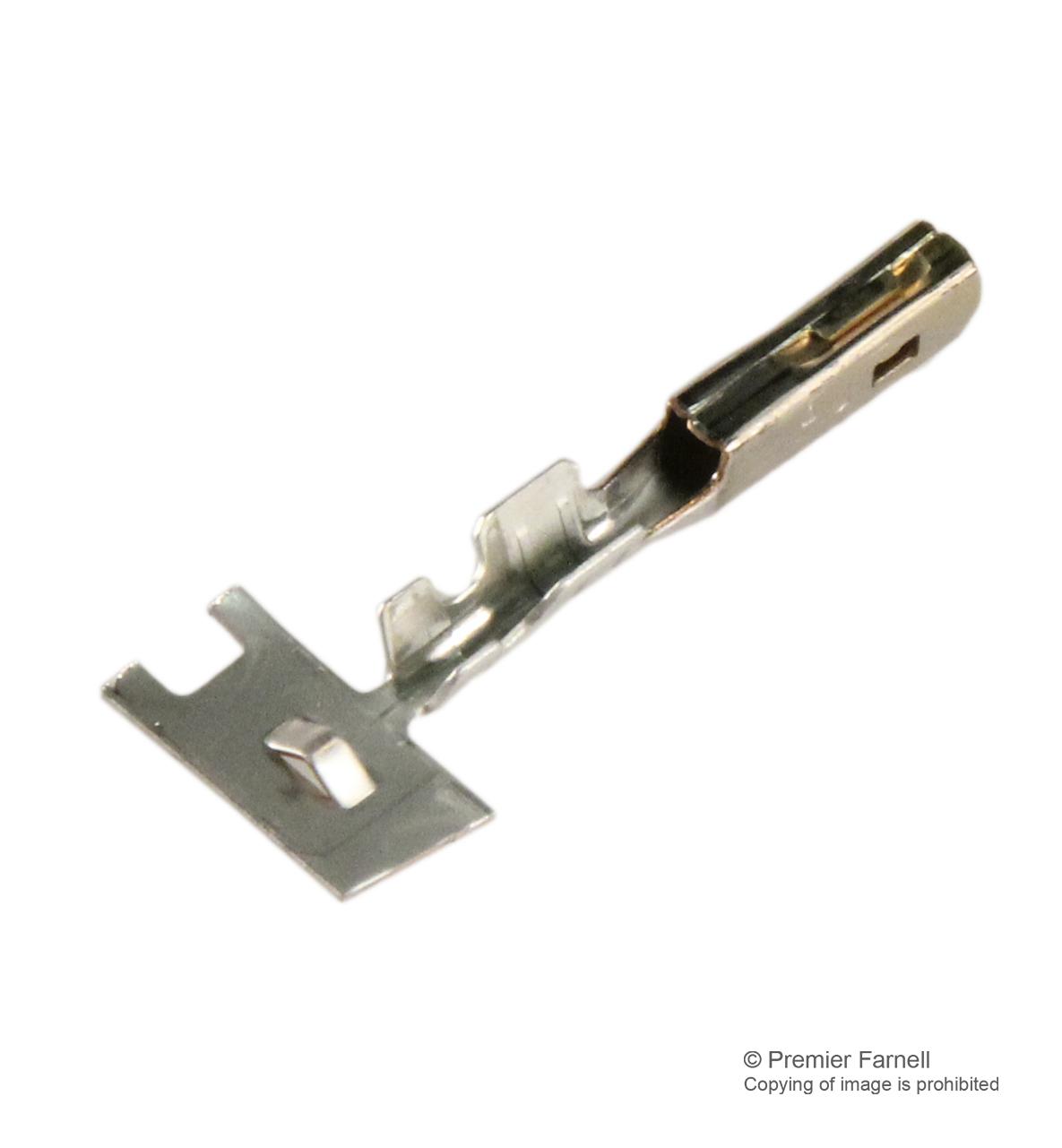

MOLEX 330015005 Female Terminal
The MX150 Female Terminal is a low-halogen, silver-plated crimp connector designed for sealed power and wire-to-board applications. It features a grip code M3, supporting wire insulation diameters from 0.35mm to 0.50mm. Made from high-performance alloy, it is halogen-free, RoHS compliant, and suitable for small polarization rib applications with reel payoff. This connector ensures secure electrical connections with crimp or compression interfaces, providing maximum 14V DC voltage and supporting various housing styles, including single and dual row configurations.
MOLEX 330015005 Female Terminal Specifications:
- Material: High Performance Alloy (HPA)
- Plating: Mating Silver, 0.762um minimum
- Wire Size: 0.35-0.50mm
- Wire Diameter Max: 1.70mm
- Voltage Rating: Max 14V DC
- Housing Types: Single Row, Dual Row, Hybrid
- Reel Packaging: Yes
- Halogen-Free: Yes
- RoHS: Compliant
- Gender: Female
- Grip Code: M3
- Termination Style: Crimp or Compression
- Application: Power, Wire-to-Board, Wire-to-Wire
- Sub-components: Compatible with 33471, 33472, 33476 housings
Buy the Buy Molex MX150 Part Number 330015005 Online
Purchase the Molex MX150 Female Terminal 330015005 online now for dependable sealing and secure electrical connections. Designed with silver plating and halogen-free materials, this terminal fits wires from 0.35 to 0.50mm. Ideal for power applications and wire-to-board connections, it supports various housing configurations and features a M3 grip code for easy handling. Reels facilitate efficient assembly, while compliance with RoHS and halogen-free standards ensures safety and environmental friendliness. Order now for quick delivery and premium performance in your electrical projects.
Order your Molex MX150 Female Terminal 330015005 today and ensure reliable, sealed power connections with high-quality crimp terminals.
Frequently Asked Questions
Where can I buy MOLEX 330015005?
You can click on the BUY or RFQ button to purchase 330015005 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 330015005?
You can download the 330015005 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 330015005?
MOLEX
