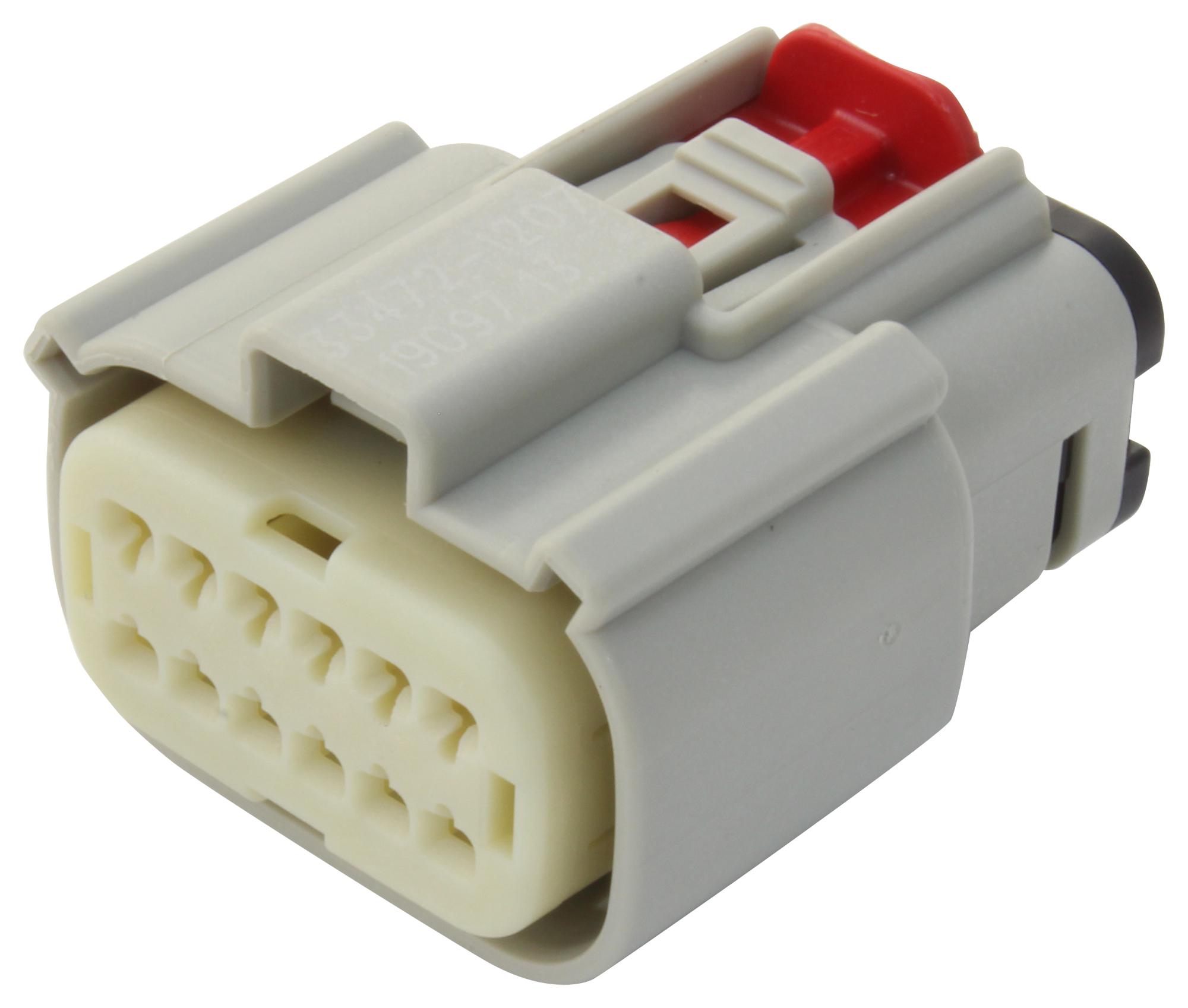

MOLEX 334721207 Sealed Female Connector
The MOLEX 33472-1207 is a robust sealed female connector within the MX150 connector system. Designed for wire-to-board and wire-to-wire applications, this connector offers 12 circuits and incorporates features like polarization B and connector position assurance (CPA) to ensure reliable mating. Constructed with modified polystyrene resin, it's suitable for demanding environments requiring protection against moisture and contaminants. It is commonly used in automotive and industrial applications where secure and dependable power connections are essential.
MOLEX 334721207 Sealed Female Connector Specifications:
- status: Active
- overview: MX150 Sealed and Unsealed Connector System
- description: MX150 Sealed Female Connector, Dual Row, 12 Circuits, Polarization B, with Connector Position Assurance, Light Gray
- circuits_maximum: 12
- color_resin: Gray (Light), Natural
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Modified Polystyrene
- alloy: N/A
- net_weight_g: 15.705
- number_of_rows: 2
- packaging_type: Individual Cell Panel Mount
- pitch_mating_interface: 3.50mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- lead_free_process_capability: N/A
- eu_elv_compliant: Yes
- eu_rohs_china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Relevant
- series: 33472
- mates_with: MX150 Male Sealed Connector, 33482 MX150 Male Bulkhead Twist-Lock Sealed Connector 348406420
- use_with: MX150 Female Terminal 33012, 33001 MX150 Cavity Plug Sealed 343450001 MX150 Backshell 349511210, 349501220
- application_specification_1: AS-33472-100-001
- application_specification_2: AS-33611-001-001
- packaging_specification_1: PK-31300-903-001
- packaging_specification_2: PK-33472-001-001
- product_specification: PS-33472-000-001
- sales_drawing_1: SD-33472-0001-001
- sales_drawing_2: SD-33472-0002-002
Buy the 33472-1207 MOLEX Sealed Female Connector | myMectronic
Purchase the MOLEX 33472-1207 Sealed Female Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 334721207?
You can click on the BUY or RFQ button to purchase 334721207 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 334721207?
You can download the 334721207 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 334721207?
MOLEX
