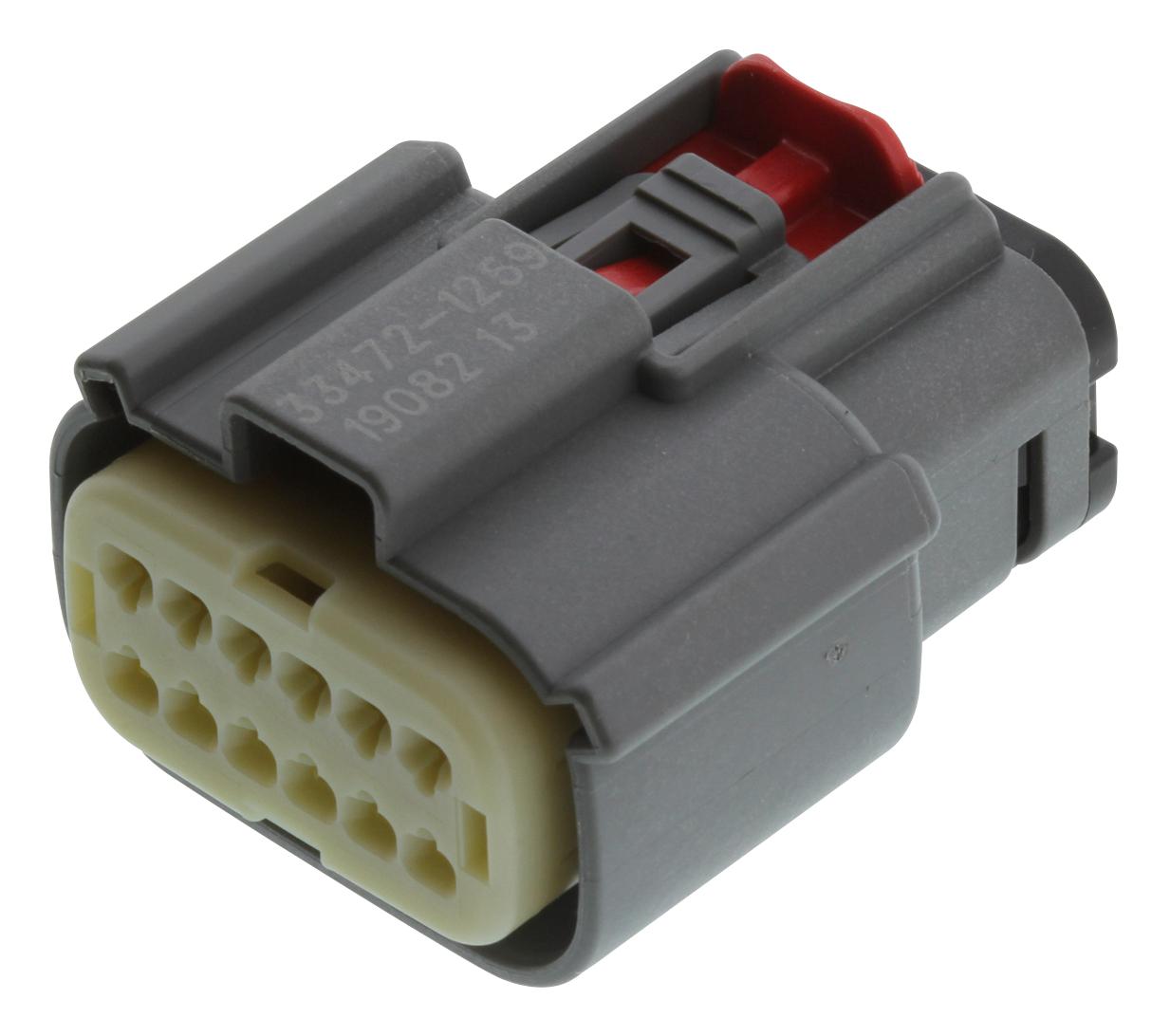

MOLEX 334721259 Sealed Female Connector
The MOLEX 33472-1259 is a robust sealed female connector within the MX150 connector system. Designed for demanding environments, it offers 12 circuits and incorporates connector position assurance (CPA) for secure mating. The dark gray modified polystyrene resin construction provides durability and resistance to environmental factors. Commonly used in automotive, industrial, and consumer electronics applications requiring reliable power and signal transmission, this connector ensures a secure and stable connection.
MOLEX 334721259 Sealed Female Connector Specifications:
- circuits_maximum: 12
- color_resin: Dark Gray
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Modified Polystyrene
- net_weight_g: 15.705
- number_of_rows: 2
- packaging_type: Individual Cell Panel Mount
- pitch_mating_interface: 3.50mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- lead_free_process_capability: N/A
- eu_elv_compliant: Yes
- eu_rohs_compliant: Yes
- china_rohs_compliant: Yes
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- series: 33472
