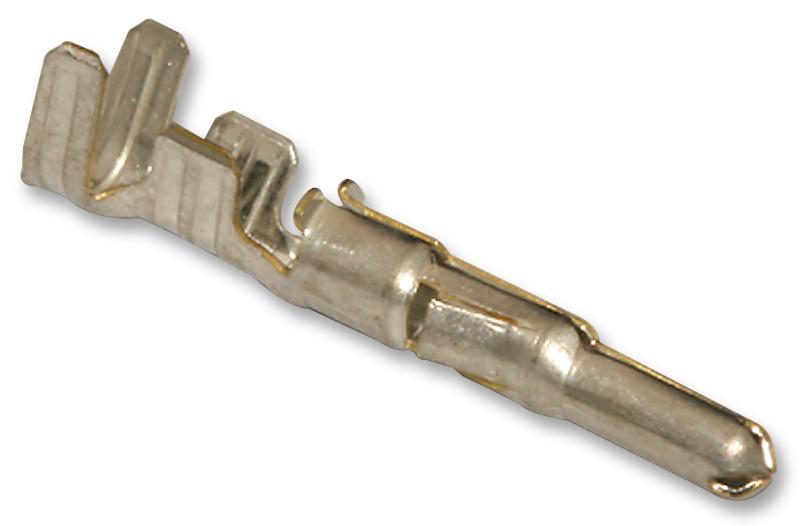

MOLEX 08700002 Crimp Terminal
The MOLEX 08-70-0002 is a robust crimp terminal designed for secure and reliable electrical connections in power applications. Constructed from brass with a tin plating, this male terminal offers excellent conductivity and corrosion resistance. It's compatible with wire sizes ranging from 18 to 24 AWG and is part of the 5006 series. This terminal is ideal for applications requiring a durable and dependable connection, commonly found in automotive, industrial, and consumer electronics.
MOLEX 08700002 Crimp Terminal Specifications:
- Product Family: Crimp Terminals
- Series: 5006
- Application: Power
- Gender: Male
- Material - Metal: Brass
- Material - Plating: Tin
- Mating Material - Plating: Tin
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.30-3.00mm
- Wire Size AWG: 18, 20, 22, 24
- Wire Size mm²: N/A
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.889µm
- Net Weight: 137.700/mg
- Packaging Type: Reel
- Engineering Number: 5006T
- UPC: 800753619067
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
