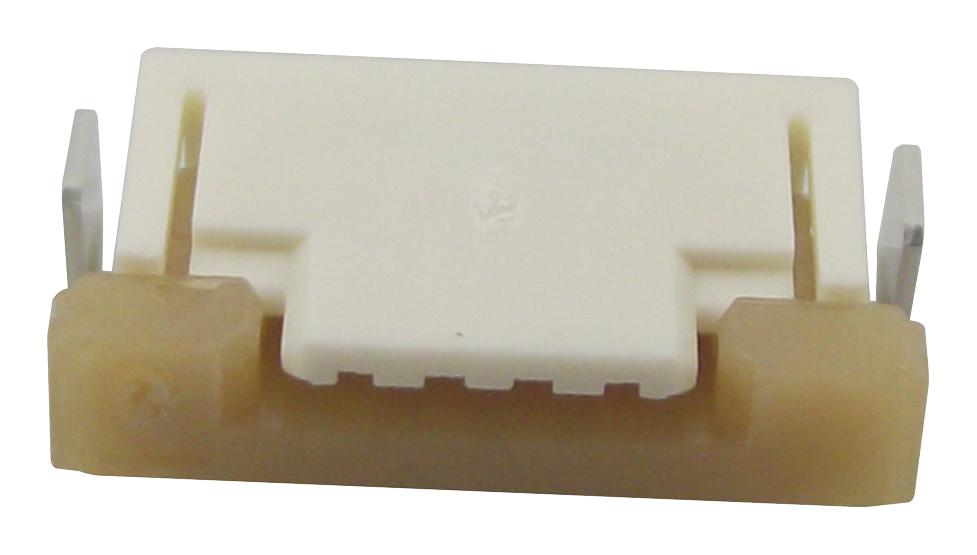

MOLEX 522071533 Easy-On FFC/FPC Connector
The MOLEX 52207-1533 is a right-angle, top-contact Easy-On FFC/FPC connector within the 52207 series. It's designed for SMT applications with a 1.00mm pitch and slider actuator. Constructed with phosphor bronze and a tin-silver-bismuth plating, this connector offers reliable electrical connection and durability. It's ideal for applications requiring compact size and easy handling in consumer electronics, industrial equipment, and automotive systems.
MOLEX 522071533 Easy-On FFC/FPC Connector Specifications:
- overview: FFC-FPC (SMT)
- pitch_mating_interface: 1.00mm
- circuits_loaded: 15
- material_plating_mating: Tin-Silver-Bismuth
- material_plating_termination: Tin-Silver-Bismuth
- material_resin: Nylon
- durability_mating_cycles_max: 30
- flammability: 94V-0
- mated_height: 2.70mm
- orientation: Right Angle
- pcb_tail_length: 2.00mm
- temperature_range_operating: -40° to +85°C
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- halogen_free_status: Not Low-Halogen
- reach_svhc: Not Contained Per -ED/88/2018
- rohs_status: Compliant
- pcb_retention: Yes
- polarized_to_pcb: Yes
- stackable: No
Buy the 52207-1533 MOLEX Easy-On FFC/FPC Connector | myMectronic
Purchase the MOLEX 52207-1533 Easy-On FFC/FPC Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 522071533?
You can click on the BUY or RFQ button to purchase 522071533 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 522071533?
You can download the 522071533 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 522071533?
MOLEX
