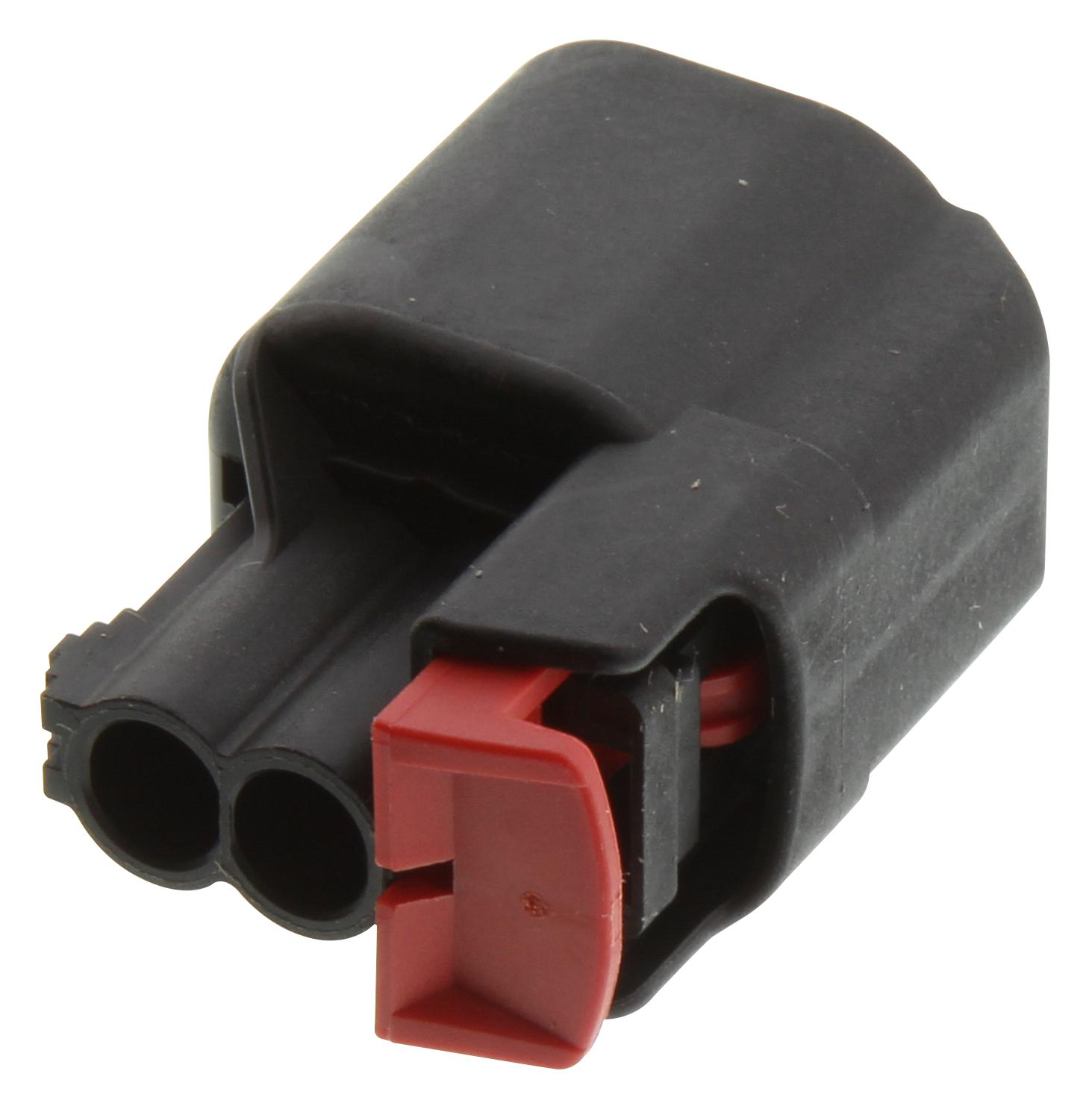

MOLEX 340620027 MX150 Sealed Receptacle
The MOLEX 34062-0027 is a key component within the MX150 Sealed and Unsealed Connector System. This female receptacle is engineered for power applications, offering a secure and reliable connection in demanding environments. Constructed from black nylon resin, it features 2 circuits and keying option C to ensure proper mating. The receptacle is designed for use with compatible MX150 male connectors and cable seal terminals, making it suitable for automotive, industrial, and other applications requiring robust electrical connections. Its polarized design and locking mechanism further enhance connection integrity.
MOLEX 340620027 MX150 Sealed Receptacle Specifications:
- circuits_maximum: 2
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 4.400
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 5.00
- pitch_termination_interface_mm: 5.00
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- lead_free_process_capability: N/A
- eu_elv_compliant: Yes
- china_rohS: Not Relevant
- halogen_free_status: Not Relevant
- reach_svhc: Not Contained
- rohs: Yes
- phthalates: Not Contained
- application: Power
- series: 34062 Series
- mates_with: 34675 MX150 Cable-Sealed Male Connector
- use_with: 34083 Tin (Sn) Cable Seal Female Terminal, 34081 Silver (Ag) and Gold (Au) Cable Seal Female Terminal
