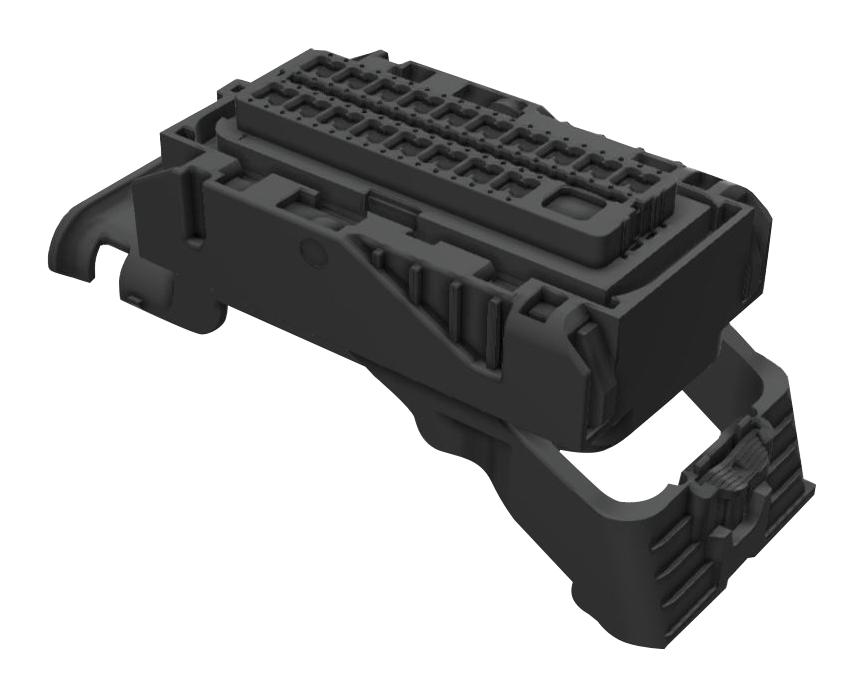

MOLEX 345760703 Sealed Receptacle Connector
The MX123 Sealed Connection System features a 2.54mm pitch female receptacle housing with keying option G and wire dress option 0, designed for power and wire-to-board applications. It includes 56 circuits, is constructed from nylon resin, and supports operating temperatures from -40°C to +125°C. The system is RoHS and ELV compliant, halogen-free, and suitable for applications requiring reliable sealed connections with maximum current ratings of 11A or 25A per contact depending on configuration. Compatible with various headers and terminals for flexible assembly in industrial and electronic systems.
MOLEX 345760703 Sealed Receptacle Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Circuits: 56
- Color - Resin: Blue
- Gender: Receptacle
- Material - Resin: Nylon
- Temperature Range - Operating: -40°C to +125°C
- Current - Maximum per Contact: 11.0A, 25.0A
- Net Weight: 41.804 g
- Packaging Type: Tray
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- RoHS and ELV compliant, halogen-free
- Use with MX64 female terminals, compatible headers
Buy the Molex MX123 – Reliable Sealed Connection System for Industrial Applications
Enhance your electronic and industrial projects with the Molex MX123 sealed connection system, featuring a 2.54mm pitch, 56 circuits, and robust nylon construction. Its sealed design ensures reliable performance in harsh environments, with a temperature range from -40°C to +125°C. The system is RoHS and ELV compliant, halogen-free, and supports high current ratings of up to 25A per contact. Ideal for power, wire-to-board, and industrial applications, it offers keying options and compatibility with various headers for versatile assembly solutions.
Buy Molex MX123 sealed connection system now and experience unmatched reliability and performance in industrial and electronic systems.
