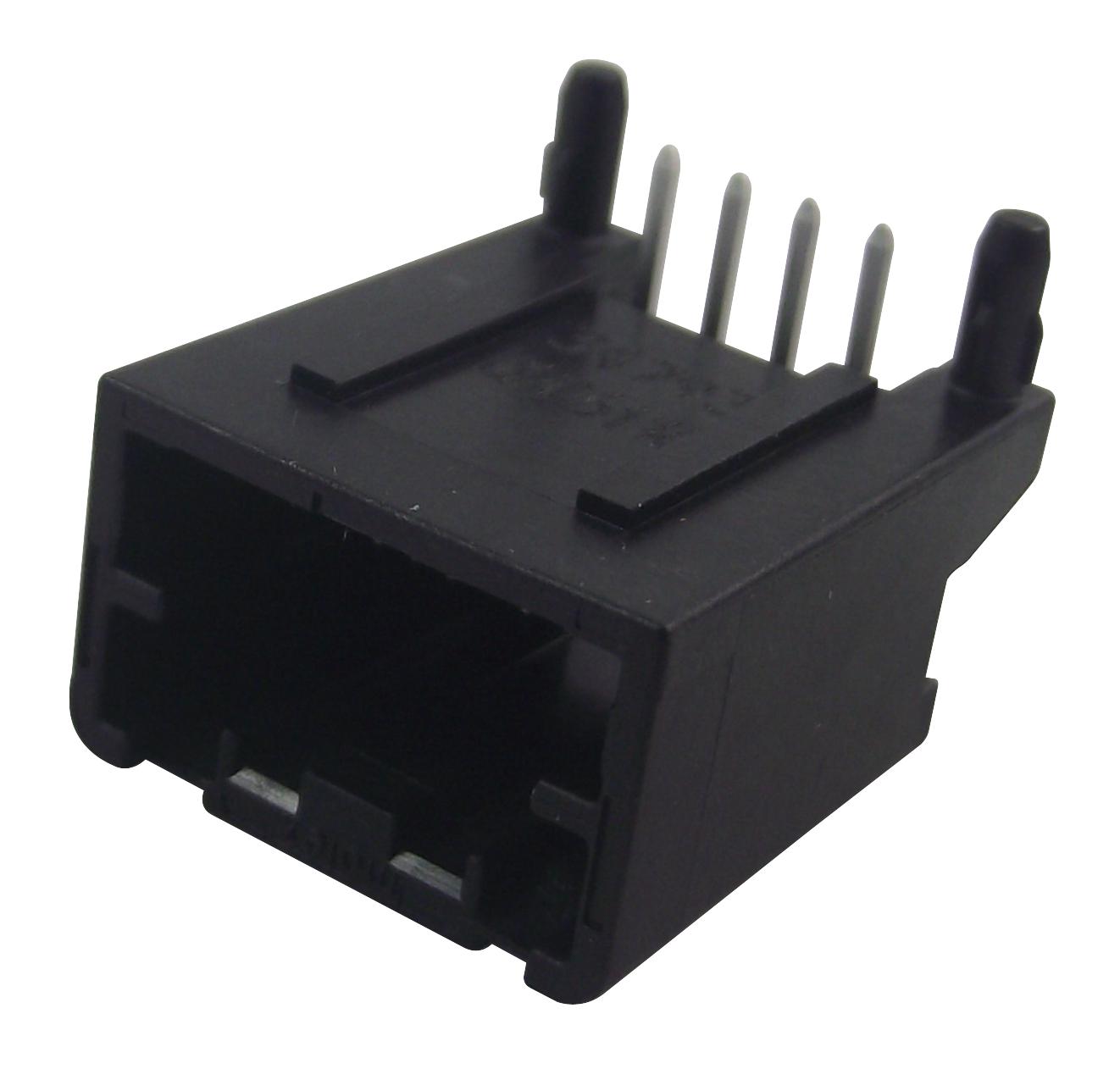

MOLEX 347930040 Mini50 Header Connector
The MOLEX 34793-0040 is a Mini50 unsealed right-angle header connector, part of the Mini50 Connection Systems family. This connector is designed for wire-to-board applications and features a single row with 4 circuits. It incorporates polarization option A for secure mating and a right-angle orientation for space-saving designs. Constructed with a black polyester resin body and tin-nickel plated terminals, it offers reliable electrical connectivity and durability. The connector is RoHS compliant and suitable for a wide range of industrial applications requiring robust and compact header solutions.
MOLEX 347930040 Mini50 Header Connector Specifications:
- overview: Mini50 Unsealed Right-Angle Header
- circuits_loaded: 4
- circuits_maximum: 4
- color_resin: Black
- first_mate_last_break: No
- glow_wire_capable: No
- guide_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin over Nickel
- material_plating_termination: Tin over Nickel
- material_resin: Polyester Alloy
- net_weight_g: 1.188
- number_of_rows: 1
- orientation: Right Angle
- pc_tail_length_mm: 2.90
- pcb_locator: Yes
- packaging_type: Tray
- pitch_mating_interface_mm: 2.00
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- temperature_range_operating_c: -40° to +105°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 4.0
- voltage_maximum_dc_v: 500
- lead_free_process_capability: WAVE
- max_cycles_at_max_process_temp: 001
- process_temperature_max_c: 260
- elv_compliant: Yes
- rohs_compliant: Yes
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
