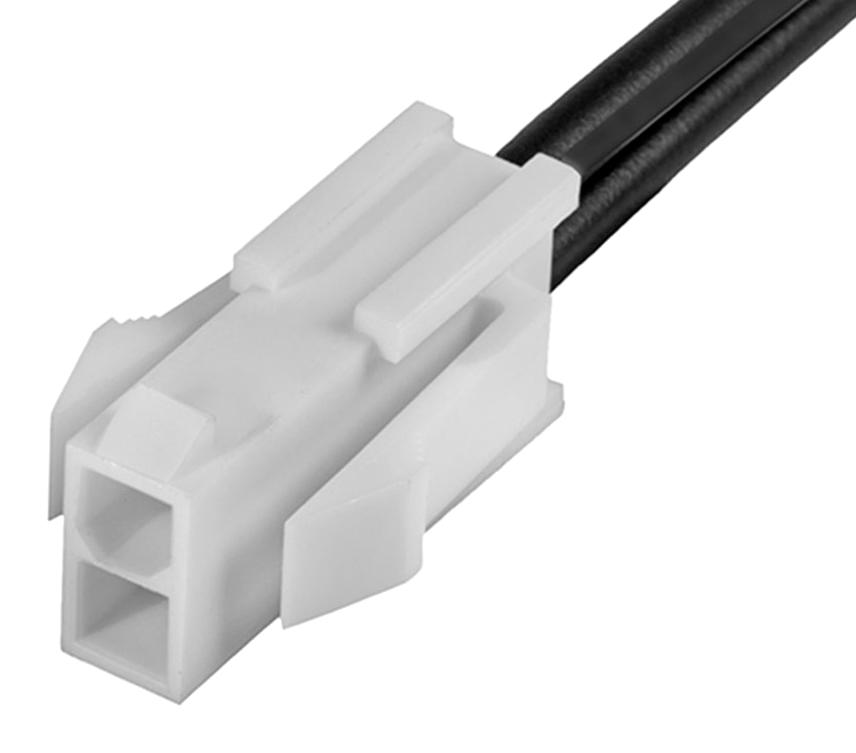

MOLEX 2153251022 Mini-Fit Jr. Cable Assembly
The MOLEX 215325-1022 is a Mini-Fit Jr. female-to-female cable assembly, ideal for power applications in wire-to-board and wire-to-wire connections. This assembly offers a robust and reliable solution with its dual-row design, tin plating for enhanced conductivity, and nylon resin insulation. It is commonly used in industrial equipment, automotive systems, and consumer electronics where secure and efficient power transmission is required. The assembly's design ensures compatibility with a range of mating connectors, simplifying integration into various systems.
MOLEX 2153251022 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr.
- cable_length: 300.00mm
- circuits_loaded: 2
- color_resin: Black
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight: 15.555/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.889µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264589579
- series: 215325
- mates_with: ['5559 Dual Row', '5566 Vertical with Pegs', '5566 Vertical without Pegs', '5569 Right Angle Dual Row with Flanges', '5569 Right Angle Dual Row with Pegs', '43810', '44068', '44281', '87427', '42404', '42440']
- drawing_number: 2153251021-000
