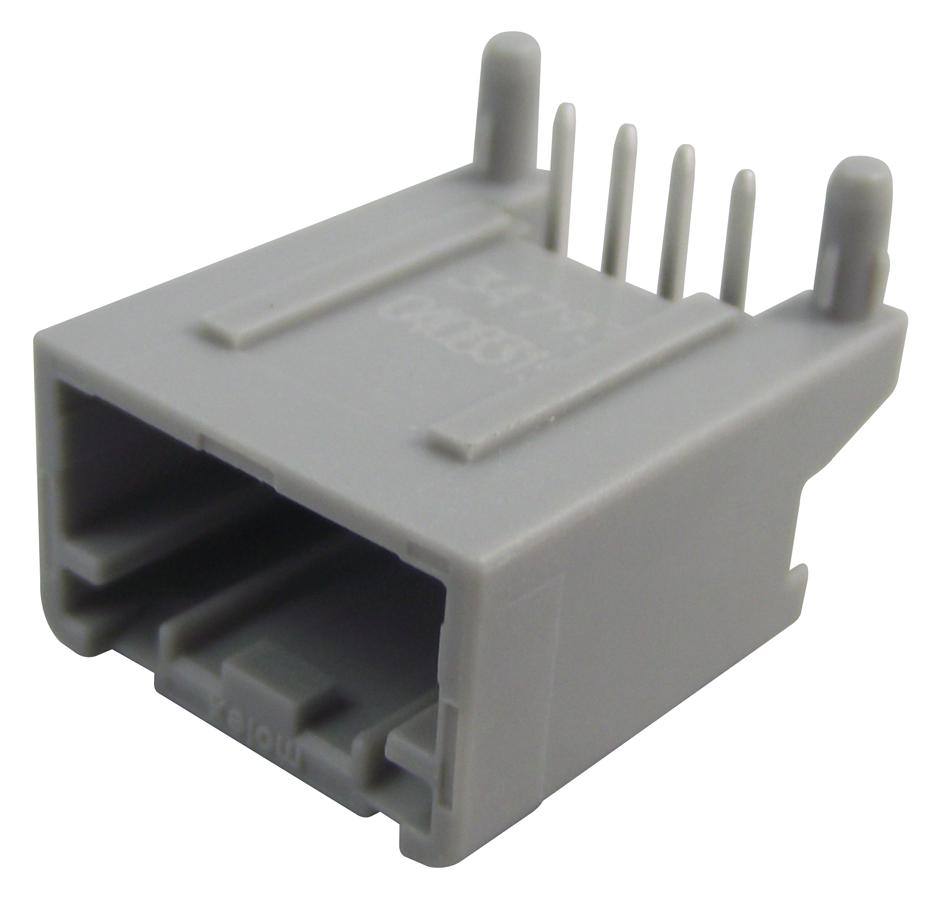

MOLEX 347930041 Mini50 Header Connector
The MOLEX 34793-0041 is a Mini50 unsealed right-angle header, part of the 34793 series. This connector is designed for wire-to-board applications, offering a robust and reliable connection solution. It features a single row with 4 circuits, polarization option B, and a gray resin color. The header is polarized to both the mating part and the PCB, ensuring proper alignment and preventing mis-mating. It is suitable for a wide range of industrial applications requiring secure and efficient electrical connections.
MOLEX 347930041 Mini50 Header Connector Specifications:
- product_family: Mini50 Connection Systems
- series: 34793
- circuits_loaded: 4
- circuits_maximum: 4
- color_resin: Gray
- first_mate_last_break: No
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin over Nickel
- material_plating_termination: Tin over Nickel
- material_resin: Polyester Alloy
- number_of_rows: 1
- orientation: Right Angle
- pc_tail_length: 2.90mm
- pcb_locator: Yes
- packaging_type: Tray
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- temperature_range_operating: -40°C to +105°C
- termination_interface_style: Through Hole
- current_maximum_per_contact: 4.0A
- voltage_maximum: 500V DC
- lead_free_process_capability: N/A
- elv_compliant: Yes
- rohs_compliant: Yes
- halogen_free_status: Not Relevant
- reach_svhc: Not Contained
- phthalates: Not Contained
- mates_with: 34791 Mini50 Unsealed Single Row Receptacle
