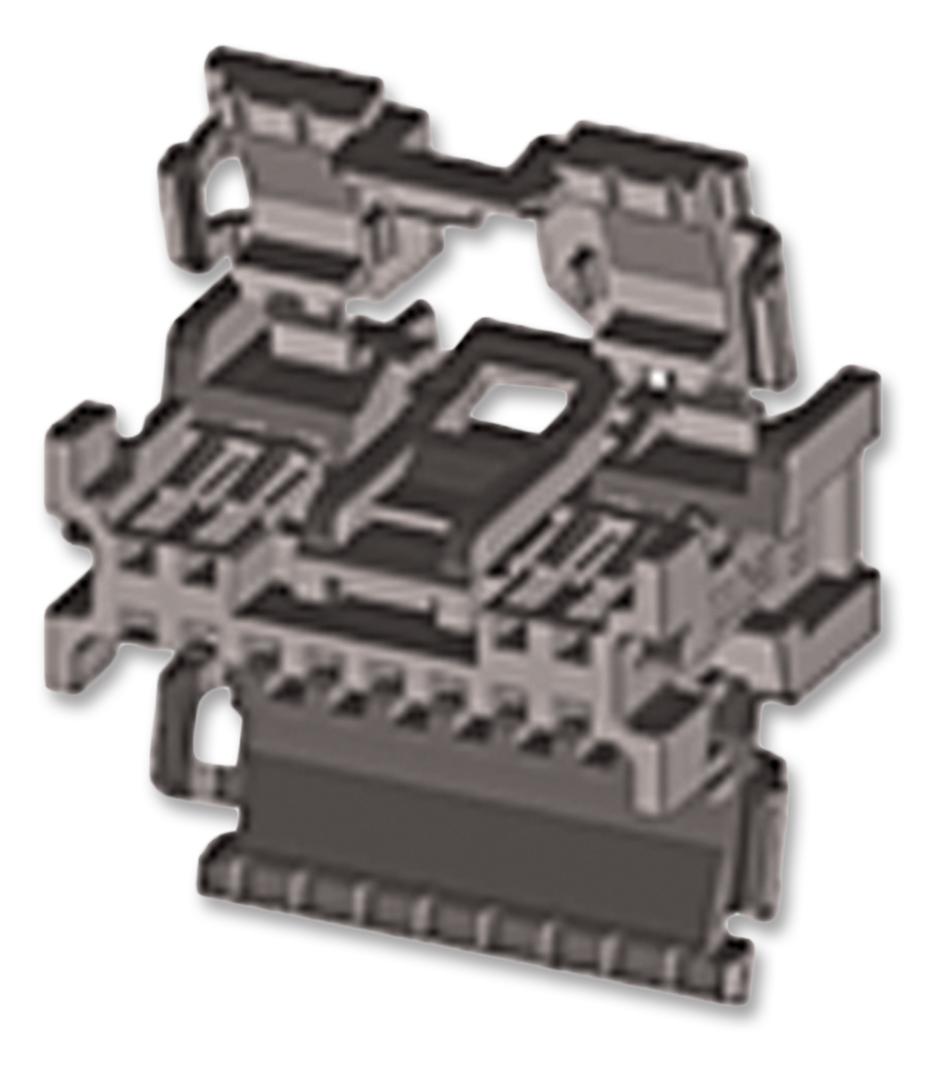

MOLEX 348240125 Mini50 Receptacle
The Mini50 Unsealed Receptacle is a compact, dual-row, non-bridged connector designed for wire-to-board applications. It features 12 circuits, polarization options, and a gray color resin, suitable for operating temperatures from -40°C to +105°C. Crafted from durable PBT material, it provides reliable electrical connection and is RoHS and ELV compliant, ensuring eco-friendly manufacturing. Compatible with Mini50 vertical, right-angle through-hole, and surface-mount headers, this receptacle offers a secure mating interface with a pitch of 2.00mm, designed for industrial automation and electronic device connectivity.
MOLEX 348240125 Mini50 Receptacle Specifications:
- Number of Circuits: 12
- Color - Resin: Gray
- Gender: Receptacle
- Material - Resin: PBT
- Temperature Range - Operating: -40°C to +105°C
- Pitch - Mating Interface: 2.00mm
- Pitch - Termination Interface: 2.00mm
- Net Weight: 1.469 grams
- Series: Mini50
- Application: Power, Wire-to-Board
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Panel Mount: No
- Glow-Wire Capable: No
- RoHS Compliant: Yes
- EU ELV Compliant: Yes
- Halogen-Free Status: Low-Halogen
- Solder Process Data: Not specified
Buy the Buy Molex Mini50 Unsealed Receptacle Part Number 0348240125 Online
Purchase the Molex Mini50 Receptacle online today to ensure secure, durable, and eco-friendly wire-to-board connections. Ideal for power applications, it features 12 circuits, polarization, and a compact dual-row design with a 2.00mm pitch. Operating over -40°C to +105°C, crafted from high-quality PBT resin, it is RoHS and ELV compliant for environmentally conscious manufacturing. Compatible with various headers, this connector guarantees reliable electrical contact, helping streamline your assembly process with ease and precision.
Buy Molex 0348240125 now and experience unmatched reliability and performance with this robust 12-circuit wire-to-board connector designed for industrial and electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 348240125?
You can click on the BUY or RFQ button to purchase 348240125 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 348240125?
You can download the 348240125 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 348240125?
MOLEX
