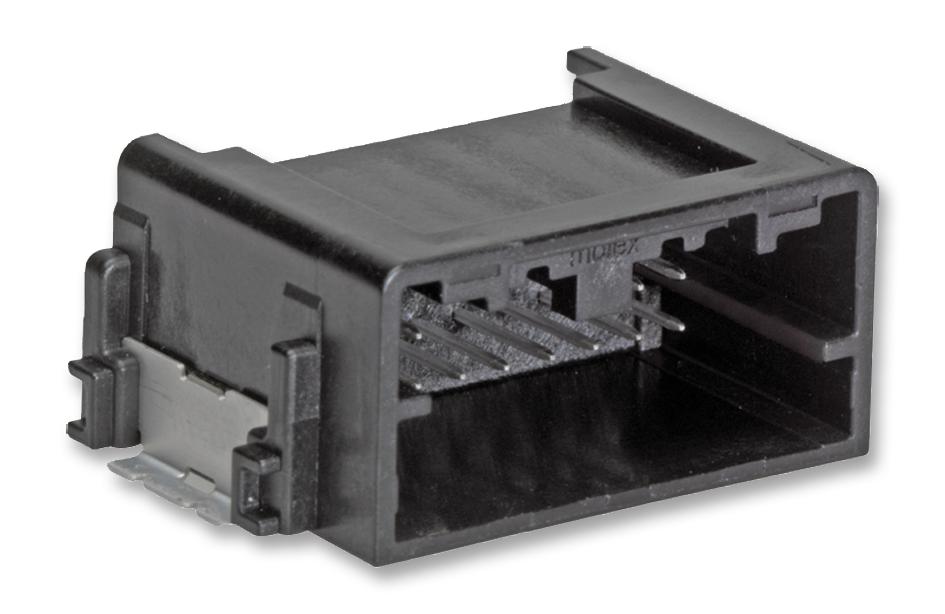

MOLEX 348976200 PCB Header
The Mini50™ Unsealed Header, Right Angle, SMT, Dual Row, 20 Circuits, Gold Plating, Polarization Option A, Black, Tape and Reel, is a high-quality PCB connector designed for power and signal applications. It features a compact right-angle surface-mount design, with robust brass material and gold over nickel plating for excellent corrosion resistance and electrical conductivity. Suitable for operating temperatures from -40°C to +105°C, it supports a maximum current of 5.0A per contact and a voltage of 500V DC. Ideal for reliable board-to-board connections in compact electronic assemblies.
MOLEX 348976200 PCB Header Specifications:
- Series: 34897
- Application: Power, Signal, Wire-to-Board
- Circuits (Loaded): 20
- Circuits (Maximum): 20
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Termination Interface: Surface Mount
- Orientation: Right Angle
- PCB Retention: Yes
- Packaging Type: Tape and Reel
- Pitch - Mating Interface: 2.00mm
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 5.0A
- Voltage - Maximum: 500V DC
- RoHS and REACH compliant, Halogen-Free
- Net Weight: 3.432g
Buy the Buy Molex Mini50 Unsealed Header Part Number 348976200 Online
Shop the Molex Mini50 unsealed PCB header with 20 circuits, gold plating, and right-angle SMT design. Perfect for power and signal connections in tight spaces. Durable brass construction with gold over nickel plating ensures excellent conductivity and corrosion resistance. Capable of handling up to 5.0A per contact and 500V DC, it operates efficiently between -40°C and +105°C. Ideal for electronics requiring reliable, space-saving board-to-board connections, and packaged conveniently in tape and reel for easy assembly.
Buy Molex 348976200 now and experience unmatched reliability and high-performance power and signal connections for your electronic projects.
