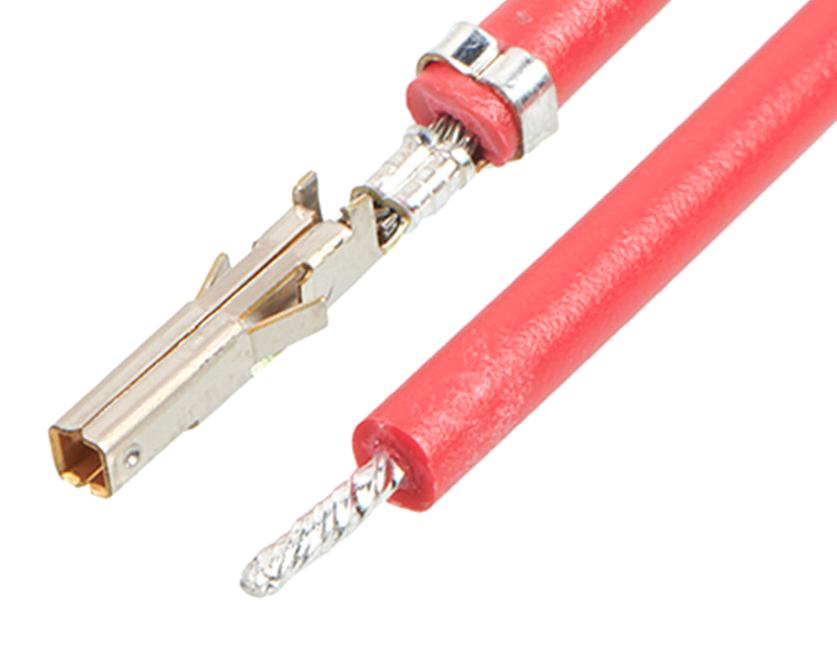

MOLEX 2153412205 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-2205 is a pre-crimped lead cable assembly designed for versatile applications including power distribution, wire-to-board connections, and wire-to-wire linking. This assembly incorporates a Mini-Fit Jr. female connector transitioning to a pigtail, ensuring compatibility with a range of systems. The gold plating on the connector provides excellent conductivity and corrosion resistance, while the tin plating on the termination enhances solderability. Suitable for applications requiring a robust and reliable connection, this cable assembly is a valuable component in various industrial and commercial settings.
MOLEX 2153412205 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215341
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- net_weight: 5.541/g
- packaging_type: Bag
- end_type: Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 20
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264559787
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_rohs: Not Contained Per D(2020)4578-DC
- halogen_free: Yes
- low_halogen: Not Low-Halogen
- sales_drawing: 2153411201-000
- use_with_housing: 5557, 44516, 42474, 43760
Buy the 215341-2205 MOLEX Mini-Fit Jr. Pigtail Cable | myMectronic
Purchase the MOLEX 215341-2205 cable assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153412205?
You can click on the BUY or RFQ button to purchase 2153412205 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153412205?
You can download the 2153412205 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153412205?
MOLEX
