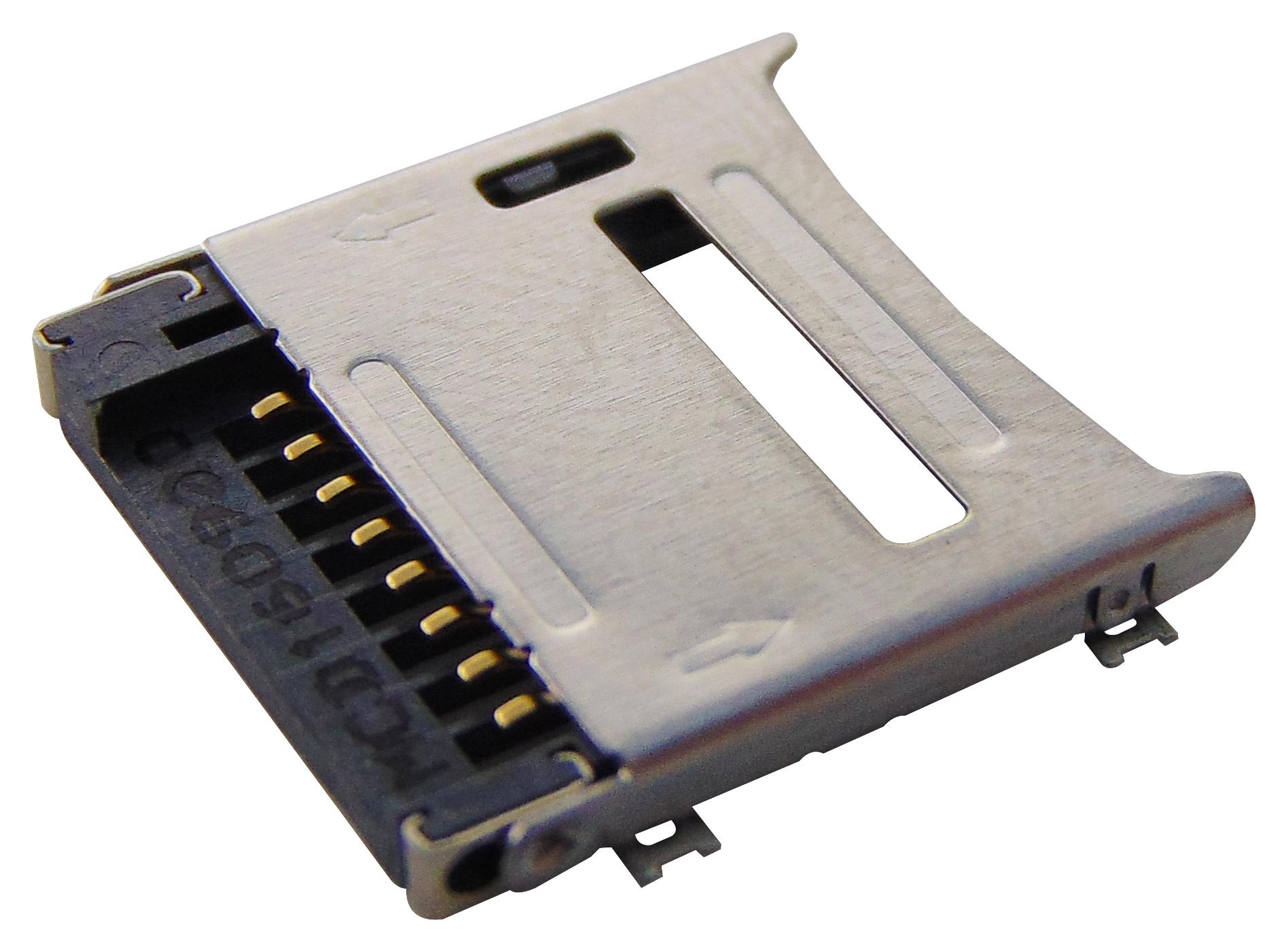

MOLEX 472192001 microSD Card Connector
The Molex 47219-2001 is a shielded, hinge-type microSD card connector designed for secure and reliable card insertion in compact devices. It features a 1.1mm pitch with front card entry, constructed from durable copper alloy and stainless steel with gold-over-nickel plating and tin termination. Supporting surface mount technology, it withstands up to 5,000 mating cycles and operates within -40°C to +85°C. The connector supports up to 0.5A per contact at 100VDC, ensuring stable electrical performance in demanding applications, with PCB retention for a secure fit.
MOLEX 472192001 microSD Card Connector Specifications:
- Pitch: 1.10mm
- Material - Contact: Copper Alloy
- Material - Shell: Stainless Steel
- Material - Plating: Gold over Nickel, Tin termination
- Color: Black
- Durability (mating cycles max): 5000
- Operating Temperature Range: -40°C to +85°C
- Maximum Current per Contact: 0.5A
- Maximum Voltage: 100V DC
- Process Capability: Reflow
- Process Temperature Max: 250°C
- Termination Style: Surface Mount
- Ingress Protection: Shielded
- Packaging: Embossed Tape on Reel
- Net Weight: 0.434g
- Certification: RoHS Compliant, Halogen-Free, Low-Halogen
- Card Entry: Front
- Contacts: 8 loaded, 8 maximum
Buy the Molex 47219-2001 – Reliable MicroSD Card Connector for Industrial Applications
Experience the reliability of the Molex microSD card connector, engineered for secure, durable, and high-performance data storage solutions. Featuring a 1.1mm pitch and shielded hinge type design, it ensures optimal electrical contact and mechanical stability. Made from high-quality copper alloy and stainless steel with gold-over-nickel plating, it supports surface mount installation and withstands up to 5,000 mating cycles within a temperature range of -40°C to +85°C. Suitable for industrial, consumer, and embedded applications where durability and performance are critical.
Get Molex 47219-2001 today—built for secure connections and long-lasting durability in electronic devices.
Frequently Asked Questions
Where can I buy MOLEX 472192001?
You can click on the BUY or RFQ button to purchase 472192001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 472192001?
You can download the 472192001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 472192001?
MOLEX
