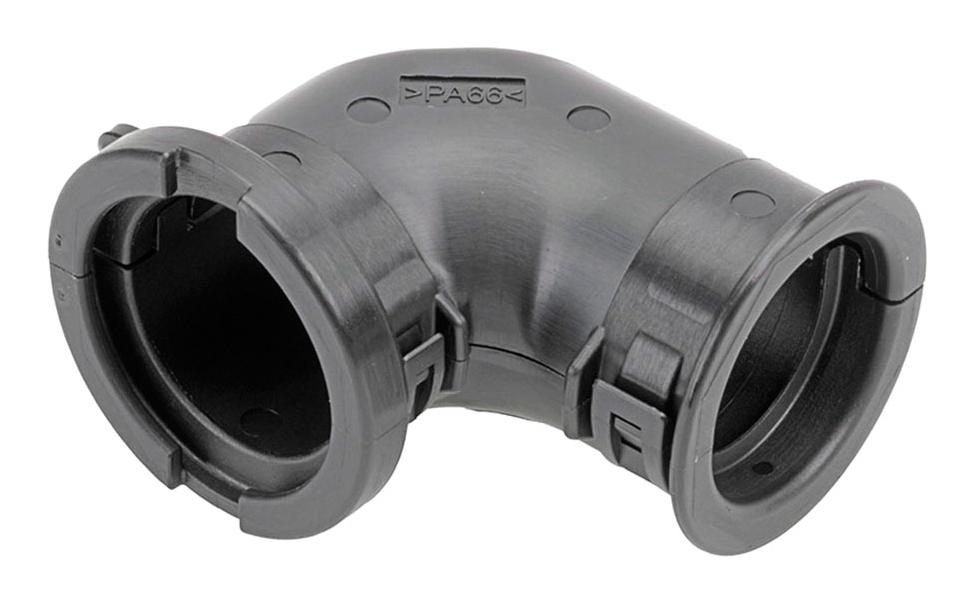

MOLEX 349511631 MX150 Sealed Connector
The MOLEX 34951-1631 is a crucial component within the MX150 Sealed and Unsealed Connector System. This connector housing serves as a 90° backshell adapter, specifically designed for use with female sealed connector assemblies. It accommodates either 16 or 20 circuits and incorporates a rib to ensure a secure and reliable mating connection. The housing is constructed from Nylon resin, offering durability and resistance in various applications, including power and wire-to-wire connections. Its polarized design and lock feature contribute to ease of assembly and prevent mis-mating. Suitable for operating temperatures ranging from -40°C to +125°C, this connector is ideal for automotive, industrial, and other demanding environments.
MOLEX 349511631 MX150 Sealed Connector Specifications:
- overview: MX150 Sealed and Unsealed Connector System
- application: Power, Wire-to-Wire
- circuits_maximum: 16, 20
- color_resin: Black
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight: 7.075/g
- number_of_rows: 0
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: N/A
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating: -40°C to +125°C
- eu_elv_compliant: Yes
- eu_rohs_compliant: Yes
- reach_svhc_contained: No
- halogen_free_status: Low-Halogen
