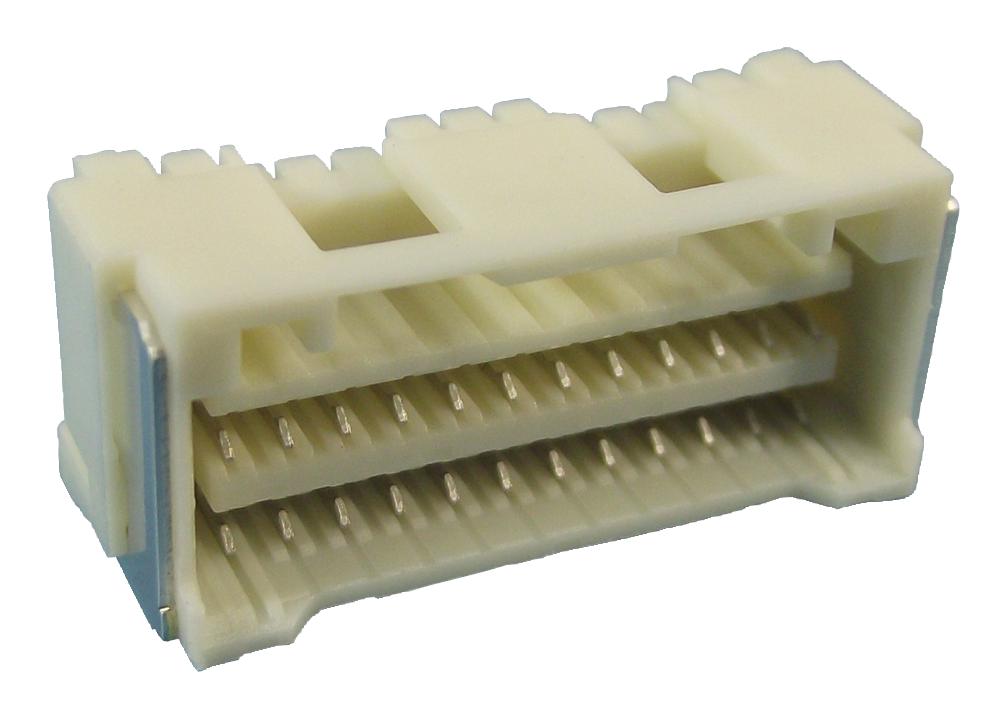

MOLEX 5031542490 Wire-to-Board Connector
The 1.50mm pitch CLIK-Mate wire-to-board connector is a reliable and durable solution designed for a variety of electronic applications. Featuring a dual row surface mount design with tin plating, it accommodates 24 circuits and ensures high-performance connections. Its compact vertical orientation and robust construction enable safe, secure, and easy mating with PCB components. Certified by UL and RoHS compliant, this connector operates within a temperature range of -40°C to +105°C, supporting currents up to 2A and voltages up to 100V, making it ideal for industrial and electronic device integration.
MOLEX 5031542490 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 1.50mm
- Number of Circuits: 24
- Color - Resin: Beige
- Durability (mating cycles max): 30
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Maximum Current per Contact: 2.0A
- Maximum Voltage: 100V
- Operating Temperature Range: -40°C to +105°C
- Height (mated): 11.20mm
- Orientation: Vertical
- PCB Thickness - Recommended: 1.20mm, 1.70mm
- Packaging Type: Embossed Tape on Reel
- Surface Mount: Yes
- Lock to Mating Part: Yes
- Color: Beige
- RoHS Compliant: Yes
Buy the Molex 5031542490 – Reliable Wire-to-Board Connectors for Industrial Applications
Purchase the Molex 5031542490 wire-to-board connector online today to ensure secure, reliable connections in your electronic projects. With a 1.50mm pitch, dual row surface mount design, and 24 circuits, this connector offers exceptional durability and consistent performance. RoHS compliant and UL certified, it supports operating temperatures from -40°C to +105°C, handling current up to 2A and voltage up to 100V. Whether for industrial automation or electronic devices, buy now to streamline your assembly process and enhance product reliability.
Get Molex 5031542490 today—built for precision and long-lasting durability in electronic assembly and industrial use.
Frequently Asked Questions
Where can I buy MOLEX 5031542490?
You can click on the BUY or RFQ button to purchase 5031542490 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5031542490?
You can download the 5031542490 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5031542490?
MOLEX
