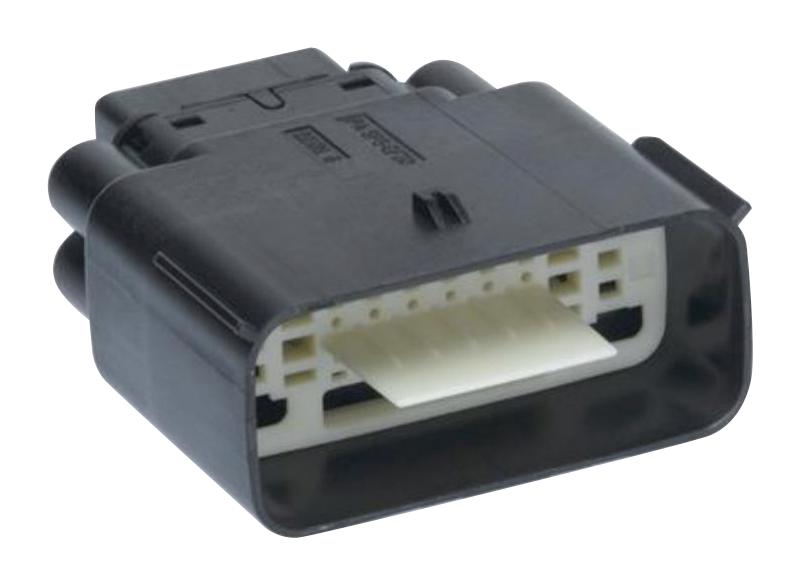

MOLEX 349861601 Sealed Power Connector
The MX150 Hybrid Sealed Male Connector is a durable, sealed, dual-row connector with 16 circuits designed for secure wire-to-wire connections. Made from high-quality SPS/Nylon resin, it offers reliable performance in harsh environments with an operating temperature range of -40°C to +125°C. This black, keying option A connector does not include connector position assurance but ensures secure mating with the matching female connector. Suitable for power and signal transmission, it is RoHS and EU ELV compliant. Ideal for industrial, automotive, and electronics applications requiring sealed, long-lasting connectivity.
MOLEX 349861601 Sealed Power Connector Specifications:
- Circuits (maximum): 16
- Color - Resin: Black
- Material - Resin: SPS/Nylon
- Net Weight: 23.655 grams
- Number of Rows: 2
- Panel Mount: No
- Pitch - Mating Interface: 3.50mm
- Temperature Range - Operating: -40°C to +125°C
- RoHS & EU ELV Compliant: Yes
- Halogen-Free: Yes
- Gender: Male (Plug)
- Glow-Wire Capable: No
- Keying to Mating Part: Yes
- Without Connector Position Assurance: Yes
- Lock to Mating Part: Yes
- Mates With: MX150 Hybrid Sealed Female Connector
- Use With: MX150 Male Terminal, Shorting Bar
- Certification: RoHS and China RoHS Compliant
- Reference Drawing: 334760000-PS-CH-000
Buy the Molex Series MX150 Sealed Male Connector: 0349861601
Purchase the Molex MX150 Hybrid Sealed Male Connector today to ensure reliable, sealed power and signal connections. Designed with durability in mind, this 16-circuit dual-row connector is suitable for harsh environments and offers high-temperature resilience from -40°C to +125°C. With keying options and RoHS compliance, it fits perfectly into industrial, automotive, and electronics applications, providing long-lasting performance. Order online now to experience the quality and dependability that Molex is known for in critical connectivity solutions.
Get Molex 0349861601 today—built for secure, sealed connections in demanding industrial environments.
