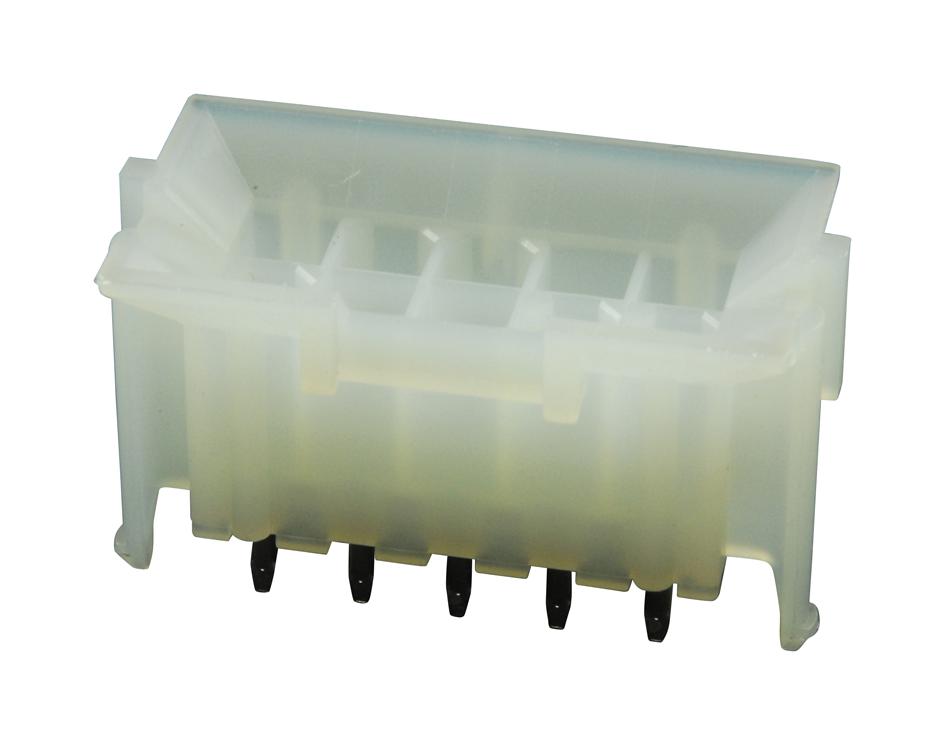

MOLEX 15246061 Mini-Fit BMI Header
The MOLEX 15-24-6061 Mini-Fit BMI Header is a versatile component ideal for a wide range of applications including board-to-board connections, power distribution, and wire-to-board interfaces. This header features a dual-row design with 6 circuits, providing ample connectivity options. Its vertical orientation and snap-in plastic peg PCB lock ensure secure and reliable mounting. Constructed with a brass body, tin plating, and a polyamide nylon 6/6 resin, the 15-24-6061 offers excellent durability and performance in demanding environments. It is compatible with Molex Mini-Fit BMI receptacles and is designed for a maximum current of 13A per circuit, making it suitable for power applications. The header's robust design and reliable performance make it a preferred choice for engineers and designers seeking a high-quality connection solution.
MOLEX 15246061 Mini-Fit BMI Header Specifications:
- overview: Mini-Fit BMI Connectors
- product_family: PCB Headers
- application: Board-to-Board, Power, Wire-to-Board
- comments: Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp Terminal Crimped to 16 AWG wire.
- circuits_loaded: 6
- circuits_maximum: 6
- color_resin: Natural
- durability_mating_cycles: 30
- flammability: 94V-2
- glow_wire_capable: No
- guide_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon 6/6
- net_weight_g: 1.805
- number_of_rows: 2
- orientation: Vertical
- pc_tail_length_mm: 3.56
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.80
- packaging_type: Tray
- pitch_mating_interface_mm: 4.20
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Partial
- stackable: No
- surface_mount_compatible: No
- temperature_range_operating_c: -40 to +105
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 13.0
- voltage_maximum_v: 600
- duration_at_max_process_temperature_seconds: 005
- lead_free_process_capability: WAVE
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_c: 240
- engineering_number: A-42440-0611
- product_specification: PS-5556-002-001, TS-5556-002-001
- sales_drawing: SDA-42440-XXXX
- symbol_footprint_data: SYM-A42440-06XX
