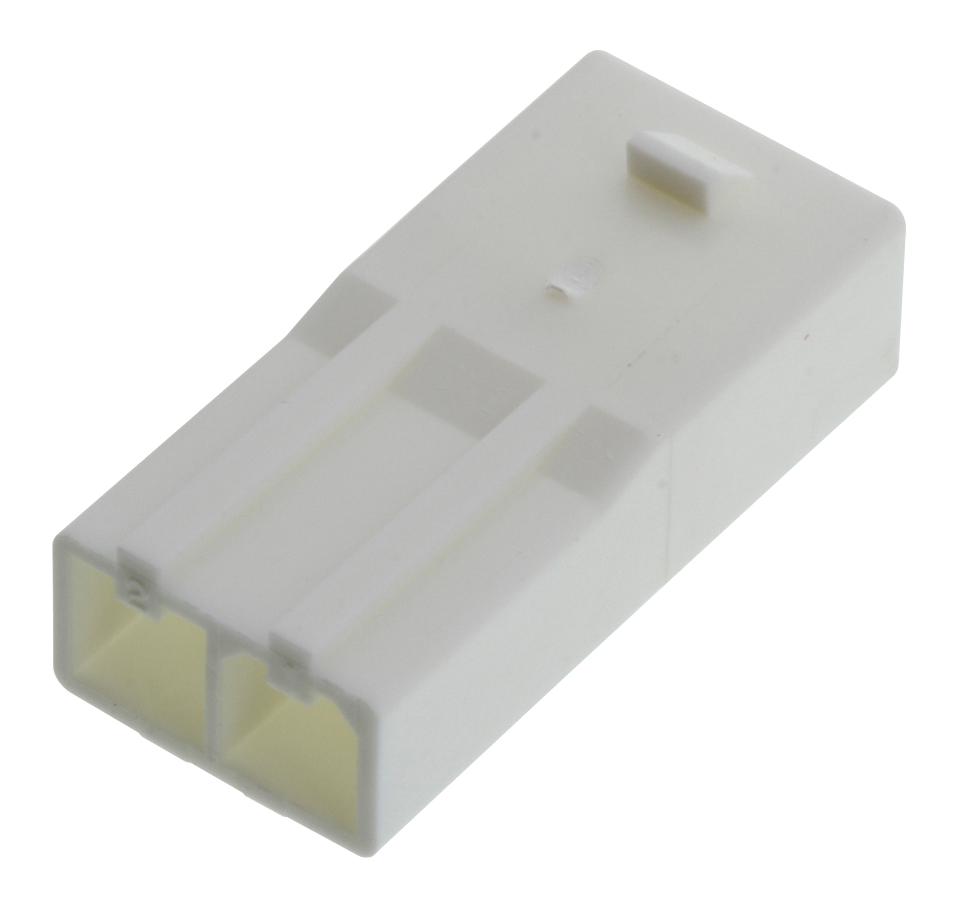

MOLEX 351500200 Wire Connector
The VersaBlade wire-to-wire connector system features a hybrid plug housing made of UL94V-0 polyester, designed for 2 circuits. It ensures secure locking to mating parts with positive lock features and is polarized to prevent incorrect insertion. Suitable for industrial applications, it operates within a temperature range of -40°C to +120°C and complies with RoHS, REACH, and UL safety standards. The connector is stackable, panel mountable, and comes in natural color, with a net weight of approximately 1.953 grams. It offers a reliable, halogen-free solution for wire-to-wire connections in various electronic systems.
MOLEX 351500200 Wire Connector Specifications:
- Circuits (maximum): 2
- Color - Resin: Natural
- Flammability: UL94V-0
- Gender: Plug
- Glow-Wire Capable: No
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: Polyester
- Net Weight: 1.953 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 6.20mm
- Pitch - Termination Interface: 6.20mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40°C to +120°C
- Solder Process Data: N/A
- Lead-free Process Capability: Yes
- Certification: CSA, UL
- Reference - Drawing Numbers: LR19980, E29179
Buy the Buy Molex Wire-to-Wire Connector Part Number 0351500200 Online
Discover the Molex VersaBlade wire-to-wire connector system featuring a 2-circuit UL94V-0 polyester housing, polarized lock, and RoHS compliance. It guarantees secure and reliable connections suitable for industrial and electronic applications, operating efficiently within a temperature range of -40°C to +120°C. Its stackable design, positive lock mechanism, and natural color make it versatile. Easy to install, it is UL and CSA certified, making it ideal for dependable electronic system connections. Order online now to enhance your project's safety and performance.
Order your Molex VersaBlade wire-to-wire connector with part number 0351500200 today and ensure reliable, safe, and stackable connections for your electronic projects.
