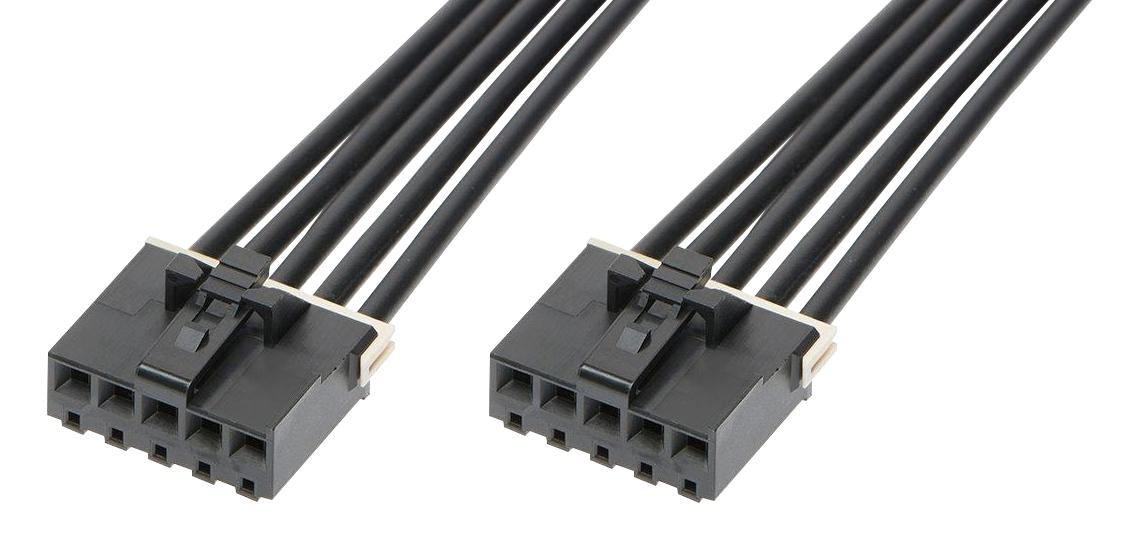

MOLEX 369210502 Cable Assembly
The LINK 396-to-L1NK 396 connector system is a versatile off-the-shelf cable assembly featuring a 3.96mm pitch, single row configuration, and 150mm length. Designed for reliable electrical connections, it supports 5 circuits with a black overmolded resin housing. Made with copper alloy contacts plated with tin, it provides a maximum current of 13.0A and voltage of 600V DC. Suitable for applications requiring durable, high-quality connectors, this assembly ensures secure connection with crimp or compression termination methods, offering robust performance in industrial and electronic devices.
MOLEX 369210502 Cable Assembly Specifications:
- Pitch: 3.96mm
- Number of Circuits: 5
- Cable Length: 150.00mm
- Color: Black
- Gender: Female-Female
- Assembly Type: Overmolded
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 3.12mm
- Wire Size AWG: 18
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 600V DC
- Packaging: Bag
- Reference Drawing: 369210500-000
Buy the Molex Series 36921 LINK 396-to-L1NK 396 Cable Assembly: 369210502
Discover the high-quality Molex Series 36921 LINK 396-to-L1NK 396 cable assembly, featuring a 3.96mm pitch, 5 circuits, and 150mm length. Designed for durability with a black overmolded resin housing and constructed from copper alloy contacts plated with tin, it supports up to 13A and 600V DC. Perfect for industrial, electronic, and automation applications requiring secure, reliable connections. Easily terminating via crimp or compression, this assembly provides robust performance essential for demanding environments.
Order your Molex Series 36921 LINK 396-to-L1NK 396 cable assembly today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 369210502?
You can click on the BUY or RFQ button to purchase 369210502 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 369210502?
You can download the 369210502 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 369210502?
MOLEX
