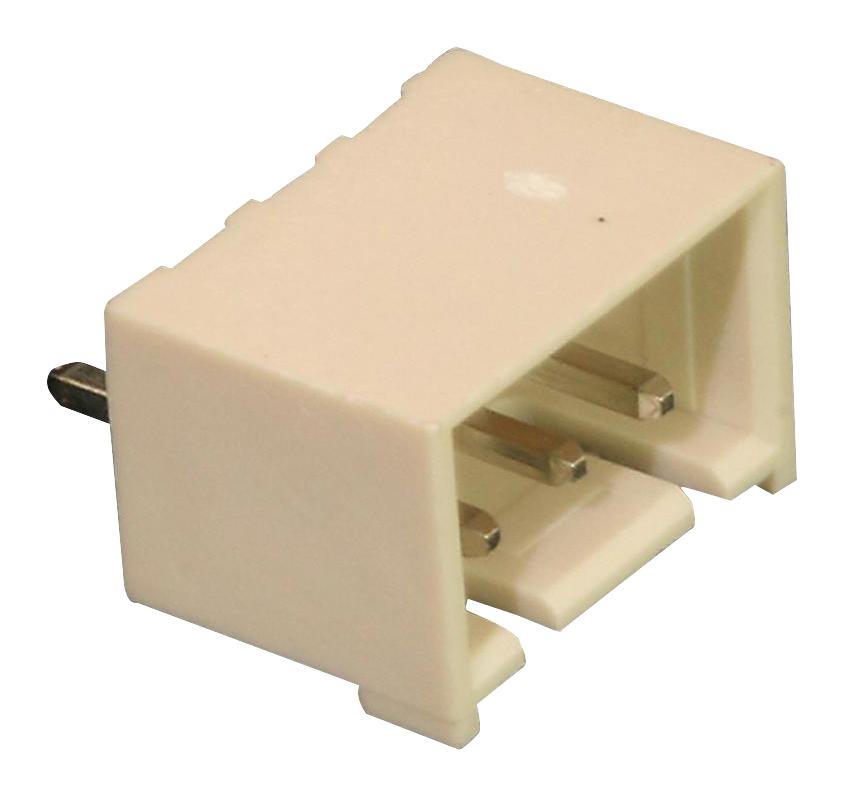

MOLEX 353120460 Header, Vertical, Shrouded
The MOLEX 35312-0460 is a vertical, shrouded header designed for signal transmission in wire-to-board applications. Its 2.50mm pitch and positive lock mechanism ensure reliable connections. Constructed from PA Polyamide (Nylon) 6/6, it offers durability and resistance to various environmental conditions. This header is suitable for applications requiring a secure and robust connection between PCBs and wires, commonly found in industrial equipment and consumer electronics.
MOLEX 353120460 Header, Vertical, Shrouded Specifications:
- product_family: PCB Headers
- series: 35312
- application: Signal, Wire-to-Board
- circuits_loaded: 4
- circuits_maximum: 4
- color_resin: Natural
- durability_mating_cycles: 30
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.40mm
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended: 1.60mm
- packaging_type: Bag
- pitch_mating_interface: 2.50mm
- pitch_termination_interface: 2.50mm
- plating_min_mating: 5.080µm
- plating_min_termination: 5.080µm
- polarized_to_pcb: No
- shrouded: Partial
- stackable: No
- smc_compatible: No
- operating_temperature_range: -40° to +105°C
- termination_interface_style: Through Hole
- current_max_per_contact: 3.0A
- voltage_max: 250V
- upc: 822348400010
- material_info_drawing_numbers: PK-35312-013-001, PK-35312-014-001, PS-35155-002-001, SD-35312-001, SD-35312-004, SD-35312-005
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
