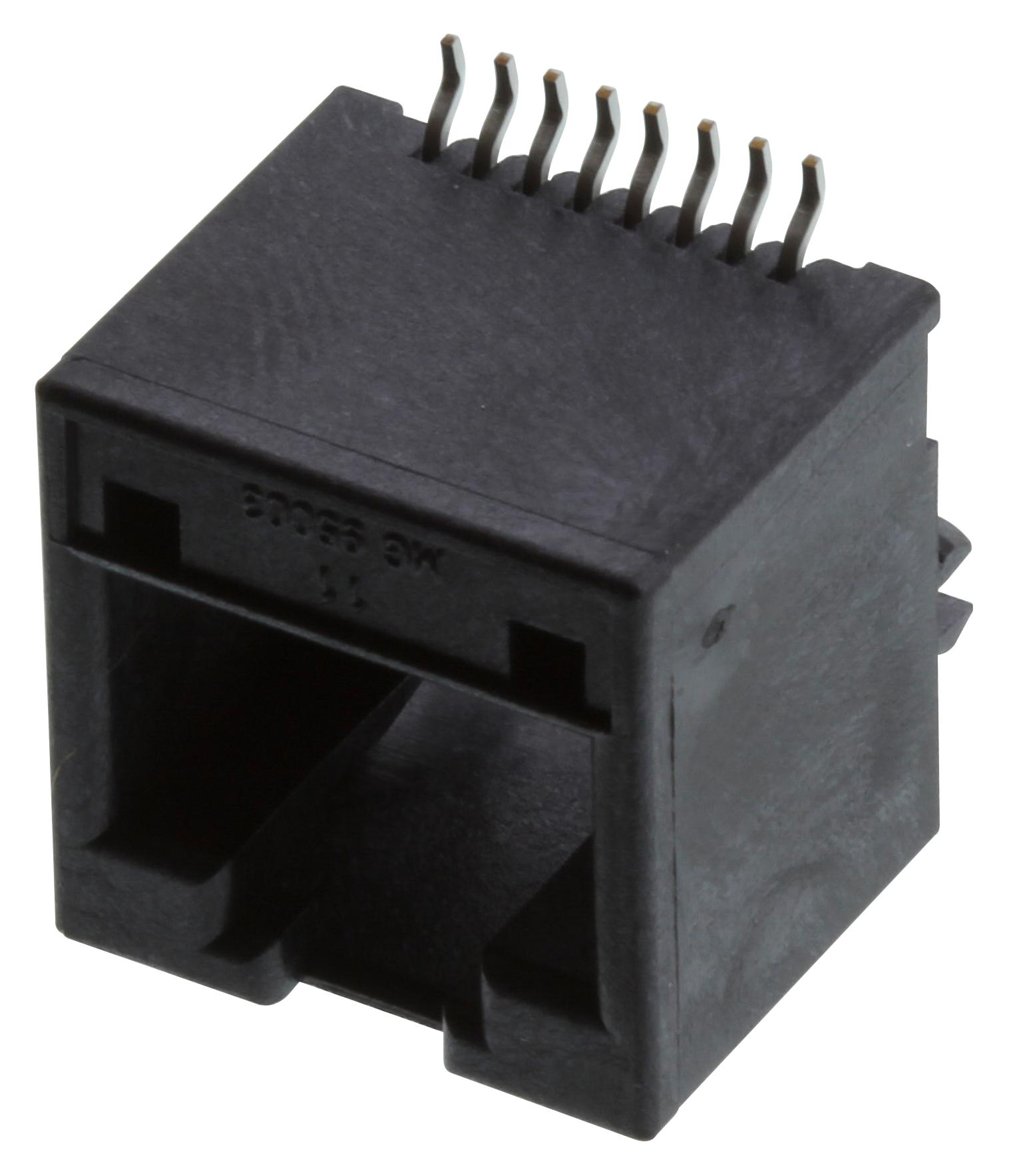

MOLEX 955036894 Networking Modular Jack
This modular jack is designed for high-performance networking applications, featuring a vertical, surface-mount design with a low profile and 8/8 port configuration. It supports Power over Ethernet (PoE) and is RoHS and REACH compliant, suitable for demanding environments. Made from high-temperature thermoplastic with copper alloy contacts plated in gold over palladium nickel, it ensures durability for up to 2500 mating cycles. The jack operates from -40° to +85°C, with a maximum voltage of 125V DC and current capacity of 1.5A per contact, making it ideal for professional networking setups and industrial systems.
MOLEX 955036894 Networking Modular Jack Specifications:
- Component Type: Magnetic
- Port Configuration: 8/8
- Port Height: 12.70mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Palladium Nickel
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): 2500
- Flammability: UL94V-0
- Operating Temperature Range: -40°C to +85°C
- Voltage - Maximum: 125V DC
- Current - Maximum per Contact: 1.5A
- Surface Mount Compatible: Yes
- Waterproof / Dustproof: No
- RoHS & REACH compliant
- Waterproof / Dustproof: No
- PCB Thickness - Recommended: 1.57mm
- Termination Interface: Surface Mount
- Plating min - Mating: 1.016um
- Plating min - Termination: 1.905um
Buy the Molex Series 955 Series Modular Jack: 955036894
Enhance your networking setup with this high-quality modular jack, offering robust performance, durability, and compatibility for professional environments. Its surface-mount design with 8/8 ports supports Power over Ethernet, ensuring seamless connectivity. Made from high-temperature thermoplastic with gold-plated copper contacts, it withstands demanding conditions up to 2500 mating cycles. Operating from -40°C to +85°C, this RoHS and REACH compliant connector guarantees safety and reliability. Easily order online to upgrade your industrial or networking projects efficiently and securely.
Order your Molex Series 955 Series Modular Jack today and give your network projects the reliable quality they deserve.
Frequently Asked Questions
Where can I buy MOLEX 955036894?
You can click on the BUY or RFQ button to purchase 955036894 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 955036894?
You can download the 955036894 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 955036894?
MOLEX
