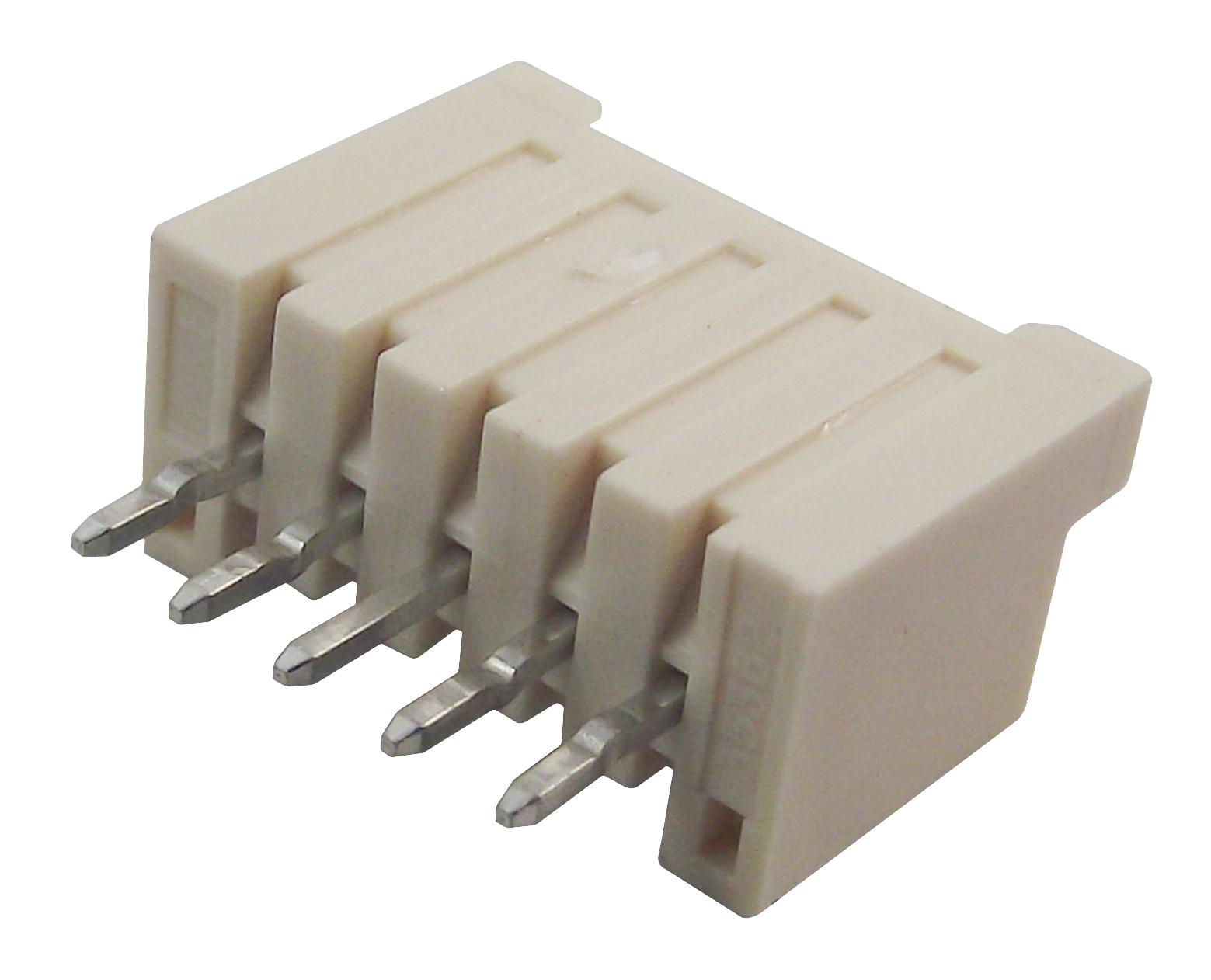

MOLEX 353620550 Wire-to-Board Header
The Sherlock Connector System features a 2.00mm pitch wire-to-board header, designed for reliable electrical connections in various applications. This vertical header includes a positive lock and kinked PC tails for secure mating and easy assembly. It supports up to 5 circuits with a maximum of 30 mating cycles, made from durable nylon resin with tin plating for corrosion resistance. Certified by CSA and UL, it operates within a temperature range of -40°C to +105°C. Its compact height of 8.50mm ensures efficient space utilization in electronic assemblies.
MOLEX 353620550 Wire-to-Board Header Specifications:
- Pitch - Mating Interface: 2.00mm
- Number of Circuits: 5
- Durability (mating cycles max): 30
- Material - Resin: Nylon
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Color - Resin: Natural
- Height - Mated: 8.50mm
- Maximum Voltage: 125V
- Maximum Current per Contact: 2.0A
- Operating Temperature Range: -40°C to +105°C
- Flammability: 94V-0
- Packaging: Bag
- Orientation: Vertical
- PC Tail Length: 3.30mm
- Shrouded: Yes
- Surface Mount Compatible: No
Buy the Buy Molex Sherlock Connector System Part Number 3533620550 Online
Discover the Molex Sherlock Connector System, a high-quality 2.00mm pitch wire-to-board header designed for reliable connections. Supports 5 circuits, features a positive lock, kinked PC tails, and durable tin plating. Certified by UL and CSA, it operates effectively between -40°C to +105°C, ensuring long-lasting performance in demanding environments. Its compact 8.50mm height allows for space-efficient designs, making it ideal for various electronic applications requiring secure and easy-to-mate connectors. Purchase online today for quality and dependability.
Buy Molex Sherlock Connector System Part Number 3533620550 now and ensure reliable, compact wire-to-board connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 353620550?
You can click on the BUY or RFQ button to purchase 353620550 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 353620550?
You can download the 353620550 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 353620550?
MOLEX
