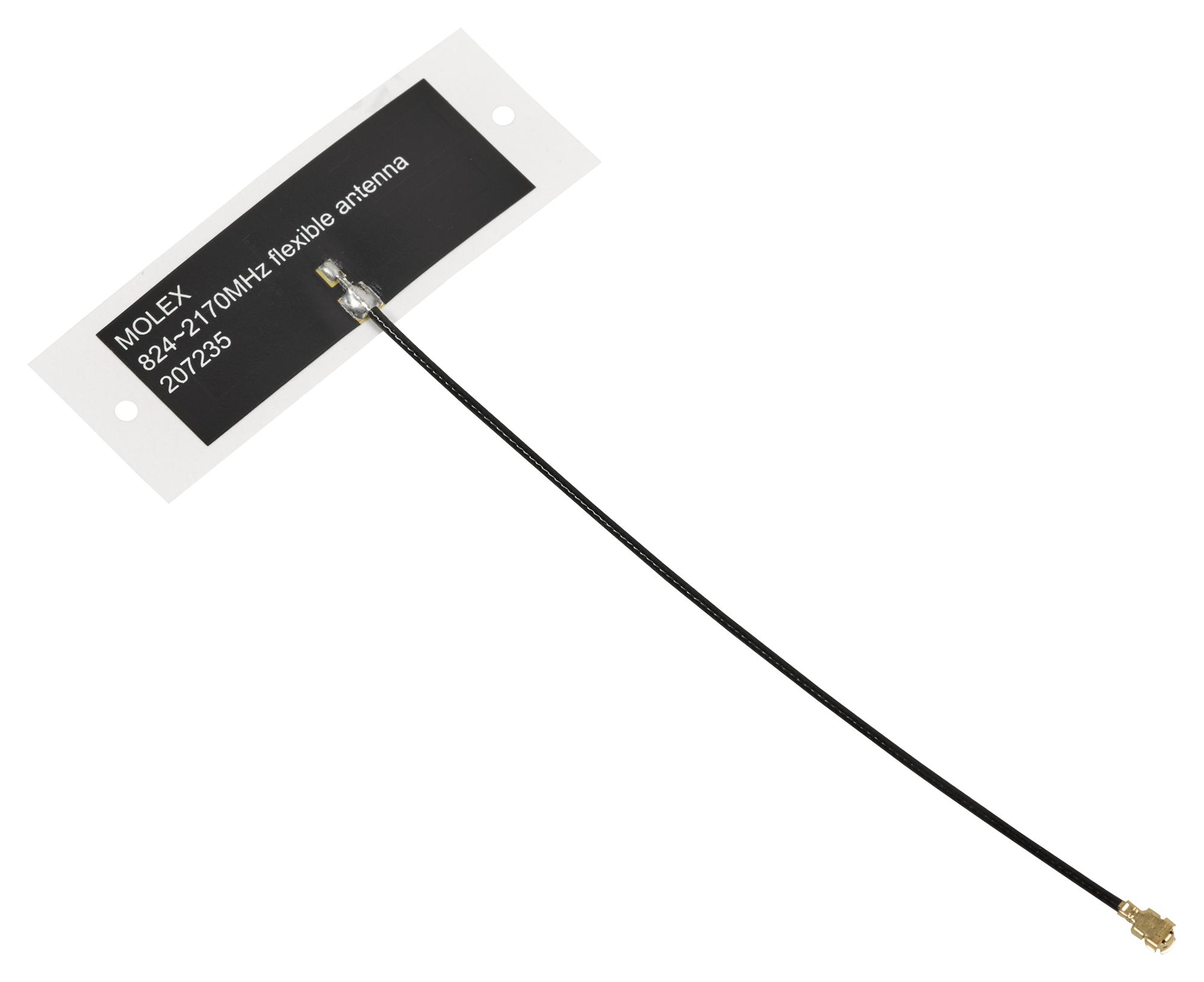

MOLEX 2072350100 Cellular Flexible Antenna
The MOLEX 207235-0100 is a flexible cellular antenna engineered for reliable wireless communication. Operating within the 824MHz to 2170MHz frequency range, this antenna is ideal for applications requiring broad cellular coverage. Its 100mm cable provides flexibility in placement, while the adhesive mounting style simplifies installation. The antenna's omnidirectional radiation pattern ensures consistent signal reception and transmission, making it suitable for IoT devices, asset tracking, and other cellular-enabled applications. It is RoHS compliant and features low-halogen status.
MOLEX 2072350100 Cellular Flexible Antenna Specifications:
- overview: Antennas
- series: 207235
- component_type: Stand Alone Antenna with Cable
- mates_with: 73412-0110 Microcoaxial RF, 50 Ohm
- product_literature_order_no: 987651-7811
- cable_length: 100.00mm
- length: 40.40mm
- mounting_style: Adhesive
- net_weight: 0.771/g
- packaging_type: PET Film
- polarization: Linear
- radiation_pattern: Omnidirectional
- thickness: 0.10mm
- width: 15.40mm
- band_1_f_end_mhz: 960
- band_1_f_start_mhz: 824
- band_2_f_end_mhz: 2170
- band_2_f_start_mhz: 1710
- peak_gain_dbi: 0 @ 824M, 4.3 @ 1710M
- return_loss_s11_db: < -4, < -6
- total_efficiency: >30% @ 824M, >60% @ 1710M
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per - ED/61/2018 (27 June 2018)
- halogen_free_status: Low-Halogen
