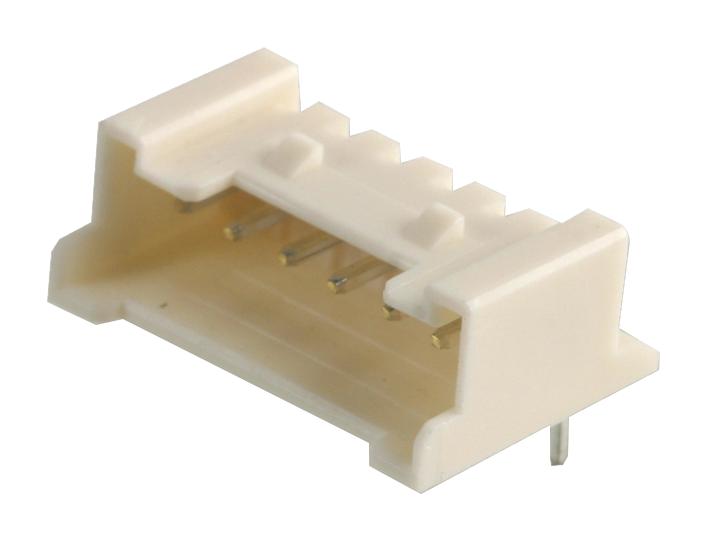

MOLEX 353630250 Wire-to-Board Connector
The Sherlock Wire-to-Board Connector System features a 2.00mm pitch and is designed for reliable electrical connections in various applications. These right-angle headers with positive lock utilize glass-filled resin for durability and secure mating, supporting up to 2 circuits. Suitable for industrial automation, consumer electronics, and communication equipment, the connectors are RoHS compliant and rated for operating temperatures from -40°C to +105°C. They are designed for ease of assembly and long-term reliability in demanding environments.
MOLEX 353630250 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 2.00mm
- Number of Circuits (Loaded): 2
- Color - Resin: Natural
- Orientation: Right Angle
- Material - Resin: Glass-filled
- Material - Plating Mating: Not specified
- Material - Plating Termination: Not specified
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 2.0A
- Voltage - Maximum: 125V
- PCB Tail Length: 1.60mm
- Durability (mating cycles max): Not specified
- Net Weight: Not specified
- Packaging Type: Bag
- Features: Polarized to Mating Part, Surface Mount Compatible (SMC), Shrouded, Stackable, Guide to Mating Part, Lock to Mating Part
- UL and CSA certified, RoHS and China RoHS compliant
Buy the Molex 353630250 – Reliable Wire-to-Board Connectors for Industrial Applications
Purchase the Molex 353630250 wire-to-board connector online now and experience dependable electrical connections for industrial and electronic applications. With a 2.00mm pitch, right-angle design, and positive lock, this high-quality connector ensures secure and durable connections in demanding environments. Its RoHS compliance, operating temperature range of -40°C to +105°C, and UL and CSA certifications make it ideal for automation, communication, and consumer electronics. Order today to guarantee your projects benefit from proven reliability and quality in every connection.
Order your Molex Series353630250 right-angle wire-to-board connector today and ensure reliable, durable connections for your industrial projects.
