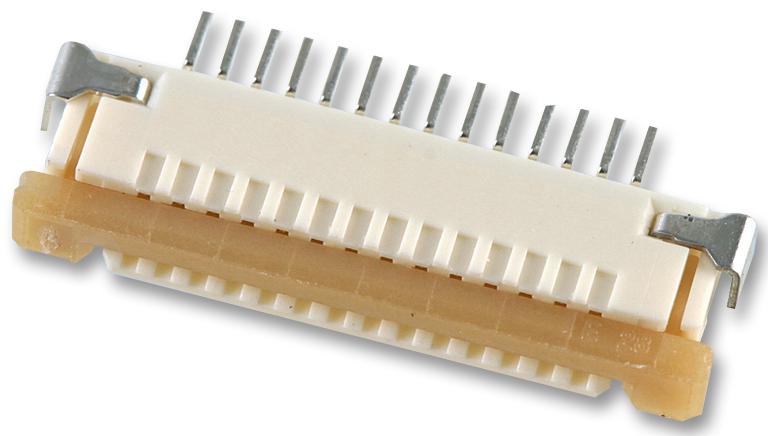

MOLEX 522073433 Easy-On FFC/FPC Connector
The MOLEX 52207-3433 is a versatile Easy-On FFC/FPC connector suitable for a wide range of applications requiring reliable connections between flexible flat cables and printed circuit boards. Its slider series design simplifies assembly, while the right-angle configuration and top contact ensure efficient space utilization. The connector's tin-silver-bismuth plating provides excellent solderability and corrosion resistance, making it suitable for demanding industrial environments. It is commonly used in consumer electronics, automotive systems, and other applications where compact and reliable FFC/FPC connectivity is essential.
MOLEX 522073433 Easy-On FFC/FPC Connector Specifications:
- Pitch - Mating Interface: 1.00mm
- Circuits (Loaded): 34
- Mated Height: 2.70mm
- Material - Metal: Phosphor Bronze
- Material - Plating: Tin-Silver-Bismuth
- Material - Resin: Nylon 11
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V
- Flammability: 94V-0
- Actuator Type: Slider
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: No
- PCB Mounting: Surface Mount
- Polarized to PCB: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +85°C
- Wire/Cable Type: FFC/FPC
Buy the 52207-3433 MOLEX Easy-On FFC/FPC Connector | myMectronic
Purchase the MOLEX 52207-3433 Easy-On FFC/FPC Connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 522073433?
You can click on the BUY or RFQ button to purchase 522073433 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 522073433?
You can download the 522073433 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 522073433?
MOLEX
