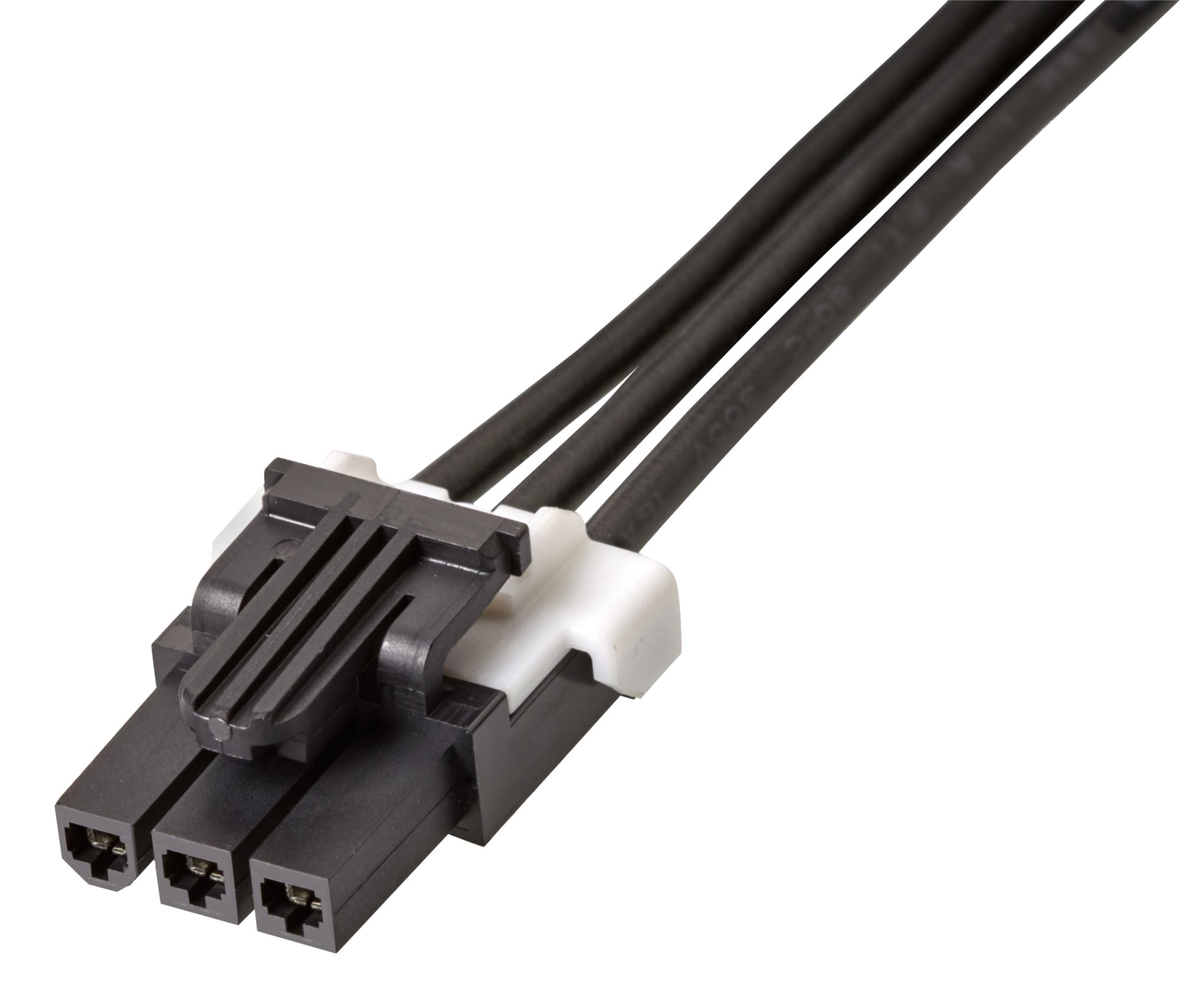

MOLEX 1451350300 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0300 is an off-the-shelf discrete cable assembly designed for power and wire-to-board applications. It utilizes Mini-Fit TPA2 connectors on both ends, offering a secure connection. The assembly features a black nylon resin overmold, phosphor bronze terminals with tin plating, and is RoHS compliant. It is ideal for applications requiring a compact and reliable power connection, such as in industrial equipment, automotive systems, and consumer electronics.
MOLEX 1451350300 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- description: Mini-Fit TPA2-to-Mini-Fit TPA2 Off-the-Shelf (OTS) Cable Assembly, Single Row, 75.00mm Length, 3 Circuits, Black
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2 Both Ends
- cable_length: 75.00mm
- circuits_loaded: 3
- color_resin: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 8.446/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_maximum_per_contact: 11.0A
- voltage_maximum: 600V AC/DC
- mates_with_housing: 200471, 200488, 5559, 5566, 5569
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
