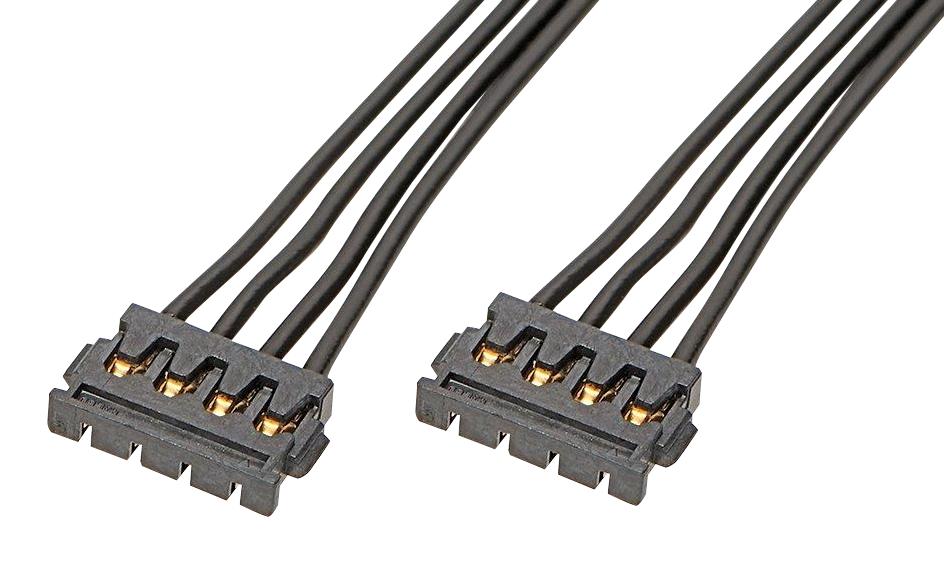

MOLEX 369200406 Pico-EZmate
The Pico-EZmate cable assembly is a 1.20mm pitch, single-row, dual-ended connector system designed for reliable wire-to-board connections. It features a 600mm length, 4 circuits, and a black Liquid Crystal Polymer (LCP) resin housing. Made with copper alloy metal, with gold-plated contacts and termination, ensuring excellent electrical performance and corrosion resistance. Suitable for low-voltage, low-current applications, it supports a maximum current of 1.5A per contact and a maximum voltage of 50V AC/DC. This assembly is RoHS and China RoHS compliant, halogen-free, with crimp or compression termination interfaces, making it ideal for compact electronic devices where durability and secure connections are essential.
MOLEX 369200406 Pico-EZmate Specifications:
- Pitch: 1.20mm
- Number of Circuits: 4
- Cable Length: 600.00mm
- Color: Black
- Material - Metal: Copper Alloy
- Material - Plating: Gold
- Material - Resin: Liquid Crystal Polymer
- Wire Insulation Diameter: 0.60-0.70mm
- Wire Size AWG: 28
- Electrical Current: 1.5A per contact
- Maximum Voltage: 50V AC/DC
- Locking: Yes, locks to mating part
- Termination: Crimp or Compression
- RoHS, China RoHS, Halogen-Free: Yes
- Gender: Female-Female
Buy the Buy Molex Pico-EZmate Part Number 369200406 Online
Purchase the Molex Pico-EZmate cable assembly online for reliable, high-quality connections in compact electronic devices. Featuring a 1.20mm pitch, 4 circuits, and 600mm length, it is constructed with corrosion-resistant gold-plated contacts and a durable Liquid Crystal Polymer (LCP) body. The assembly supports up to 1.5A per contact and 50V, making it ideal for low-voltage applications. RoHS compliant, halogen-free, and versatile with crimp or compression termination, this connector ensures long-lasting performance in tight spaces.
Get Molex Pico-EZmate 369200406 today—designed for secure wire-to-board connections with durable gold-plated contacts and high-quality materials.
Frequently Asked Questions
Where can I buy MOLEX 369200406?
You can click on the BUY or RFQ button to purchase 369200406 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 369200406?
You can download the 369200406 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 369200406?
MOLEX
