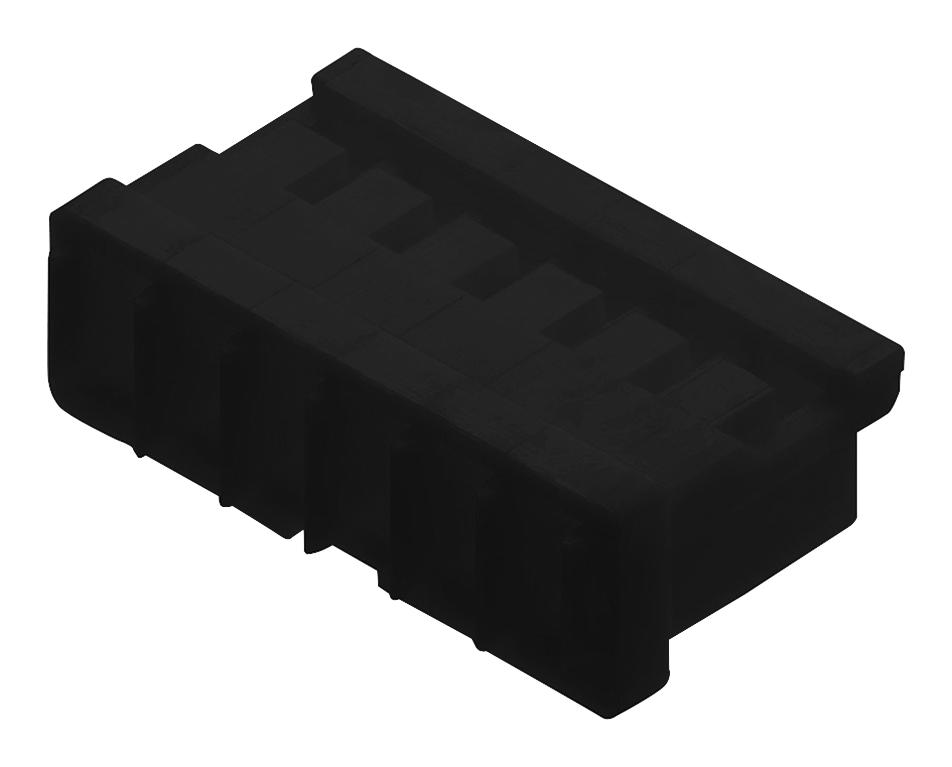

MOLEX 874390501 Wire-to-Board Connector
The Pico-SPOX Wire-to-Board Connector System features a 1.50mm pitch with a 5-circuit black housing, designed for reliable wire-to-board connections in compact electronic devices. Made from nylon with a flame-retardant rating of UL 94V-0, it offers a maximum current of 2.5A per contact and operates within a temperature range of -55°C to +105°C. Compatible with Pico-SPOX headers and crimp terminals, this low-profile connector ensures secure mating, polarization, and stackability for versatile assembly in industry applications.
MOLEX 874390501 Wire-to-Board Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits: 5
- Housing Material: Nylon
- Color - Resin: Natural
- Flammability: 94V-0
- Maximum Current per Contact: 2.5A
- Operating Temperature Range: -55°C to +105°C
- Gender: Receptacle
- Lock to Mating Part: Yes
- Stackable: No
- Polarized to Mating Part: Yes
- Shielded: No
- Packaging: Bag
- RoHS Compliant: Yes
- Low-Halogen: Yes
- Agency Certifications: UL, CSA
- Operating Voltage: Not specified, suitable for low-voltage electronic applications
Buy the Molex 0874390501 – Reliable Wire-to-Board Connector for Industrial Applications
Purchase the Molex wire-to-board connector online today to ensure your electronic projects benefit from high-quality, reliable connections. Its 1.50mm pitch and 5 circuits make it ideal for compact, precise assembly in industrial and consumer electronics. The nylon housing provides excellent durability, flame retardancy, and secure mating, operating efficiently within -55°C to +105°C temperature ranges. Suitable for professional use, this connector guarantees stable electrical performance and compliance with RoHS standards, making it a trustworthy choice for manufacturers and engineers.
Get Molex 0874390501 today—built for precision and long-lasting durability in electronic device connections.
