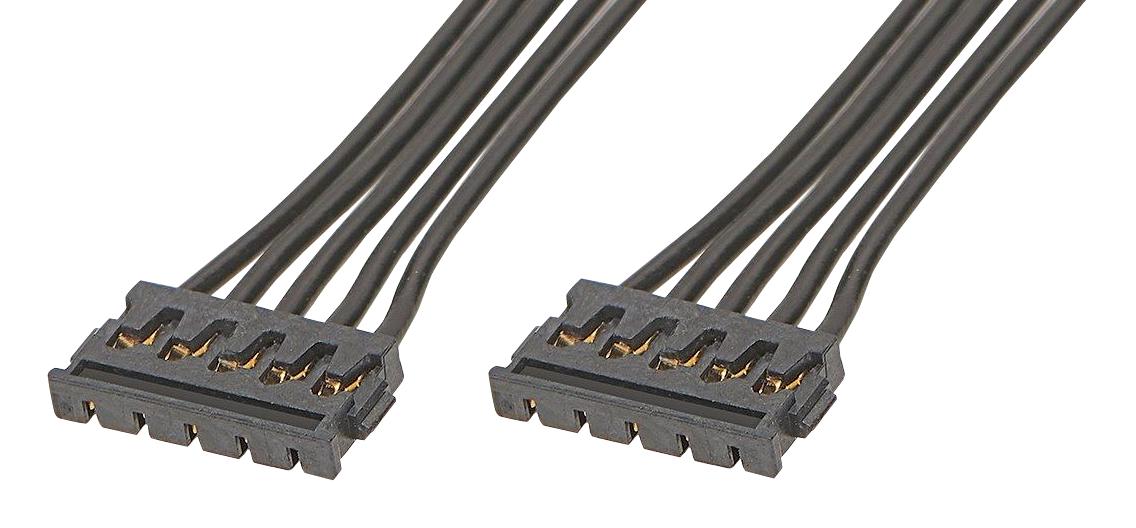

MOLEX 369200502 Wire Assembly
The Pico-EZmate off-the-shelf cable assembly features a 1.20mm pitch, single-row design with five circuits, black resin, and a length of 150mm. It connects Pico-EZmate modules with female-female gender, utilizing copper alloy metal contacts with gold plating for reliable electrical connection. The assembly supports crimp or compression termination interfaces and is rated for a maximum of 1.5A per contact and 50V AC/DC. Suitable for compact electronic and industrial applications, it offers durability, RoHS compliance, and optimal performance. Ideal for wire-to-board and connector-to-connector configurations in diverse electronic systems.
MOLEX 369200502 Wire Assembly Specifications:
- Pitch: 1.20mm
- Number of Circuits: 5
- Cable Length: 150.00mm
- Color: Black
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating: Gold
- Material - Resin: Liquid Crystal Polymer
- Wire Insulation Diameter: 0.60-0.70mm
- Wire Size: AWG 28
- Current per Contact: 1.5A
- Voltage Maximum: 50V AC/DC
- Termination Interface: Crimp or Compression
- RoHS Compliant
- Number of Rows: 1
- Net Weight: 1.503g
Buy the Molex 0369200502 – Reliable Wire-to-Board Connector for Industrial Applications
Purchase the Molex Pico-EZmate cable assembly online today and enjoy dependable connections for your electronic projects. Designed with a 1.20mm pitch, five circuits, and a length of 150mm, this assembly ensures secure, reliable performance. Its gold-plated contacts provide corrosion resistance and optimal electrical contact, supported by crimp or compression termination interfaces. Suitable for industrial and consumer electronics, its RoHS compliance promotes environmentally safe manufacturing. Order now to enhance your device connectivity with a high-quality, easy-to-install connector system.
Buy Molex 0369200502 now and experience unmatched reliability and performance with durable gold-plated contacts and flexible termination options.
