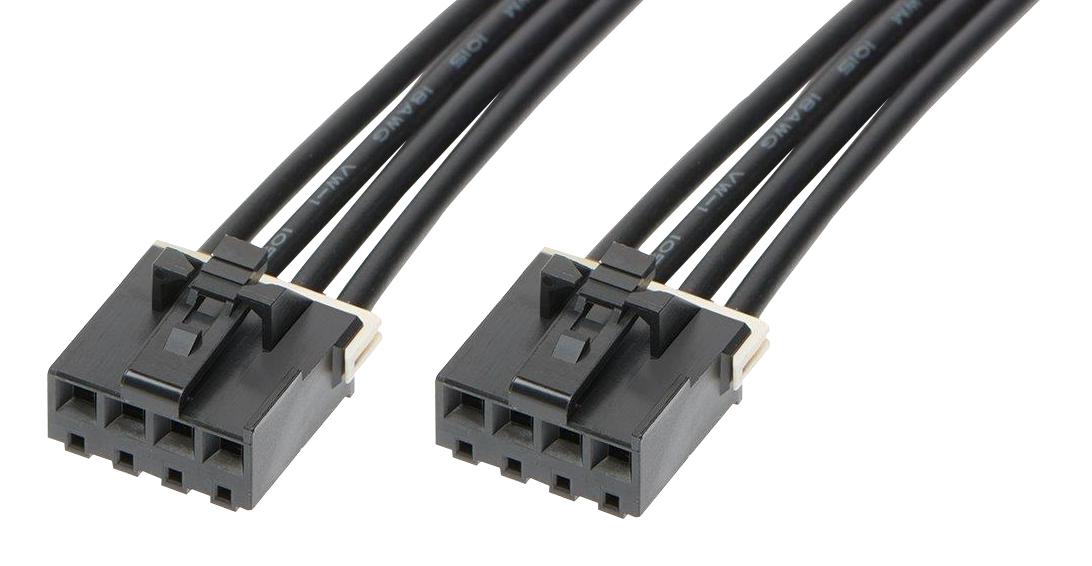

MOLEX 369210402 Cable Assembly
The Molex LINK 396-to-L1NK 396 Off-the-Shelf Cable Assembly features a 3.96mm pitch, single-row configuration, and is 150mm long with 4 circuits. Designed with overmolded connector-to-connector assembly, it offers reliable male-female connections in black color. Crafted from high-quality copper alloy with tin plating, the assembly supports up to 13.0A current and 600V maximum voltage, making it ideal for various electronic applications. Its nylon insulation provides durability, while crimp or compression termination ensures solid electrical contact for efficient performance.
MOLEX 369210402 Cable Assembly Specifications:
- Pitch - Mating Interface: 3.96mm
- Number of Circuits: 4
- Cable Length: 150.00mm
- Color - Resin: Black
- Assembly Configuration: Connector to Connector, Overmolded
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 600V DC
- Wire Insulation Diameter: 3.12mm
- Wire Size AWG: 18
- Packaging Type: Bag
- Net Weight: 15.970g
Buy the Buy Molex LINK 396-to-L1NK 396 Part Number 0369210402 Online
Purchase the Molex LINK 396-to-L1NK 396 Cable Assembly online today to enjoy fast delivery and excellent quality. This robust 4-circuit, 3.96mm pitch cable features a 150mm length with overmolded female-female connectors, perfect for electronic applications requiring reliable connection. Constructed from durable nylon and tin-plated copper alloy, it supports up to 13A and 600V. Easy to install with crimp or compression termination, this assembly ensures consistent performance, making it an essential component for professional electronics and automation systems.
Order your Molex Series36921 LINK 396-to-L1NK 396 Cable Assembly today and ensure reliable, high-quality connections for your electronic projects.
