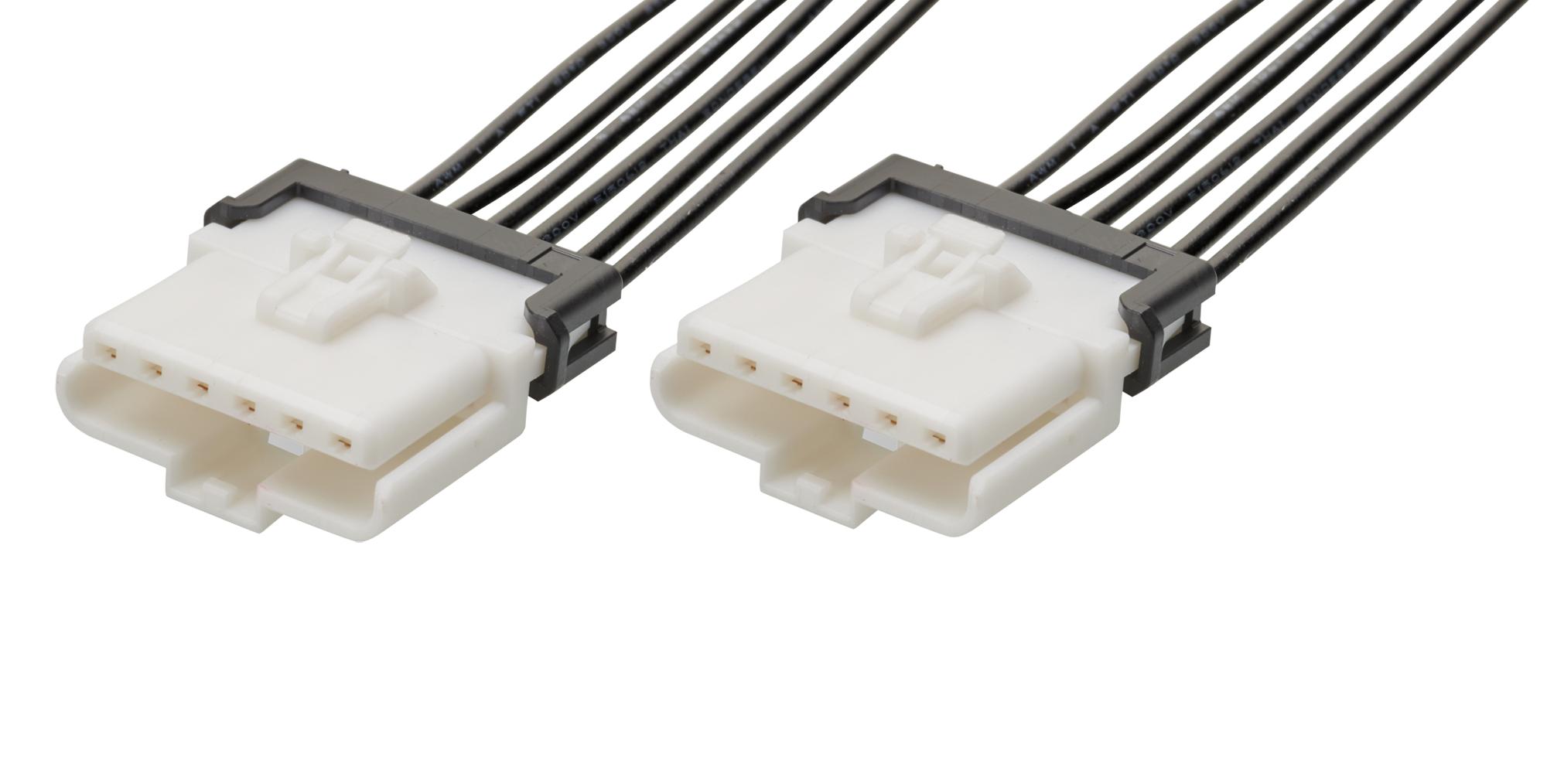

MOLEX 369220601 Wire-to-Wire Connector
The Ditto Wire-to-Wire Interconnect assembly features a 3.00mm pitch with a 100mm length and six circuits, designed for reliable power and signal transfer in electronic applications. Manufactured with tin-plated brass and nylon housing, it offers high durability, UL 1061 compliance, and maximum current capacity of 4.5A at 350V. Its hermaphroditic connector-to-connector design simplifies installation. Suitable for various industrial and electronic systems, this assembly ensures secure and stable connections with crimp or compression termination methods, making it ideal for compact, high-performance wiring solutions.
MOLEX 369220601 Wire-to-Wire Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 6
- Cable Length: 100.00mm
- Color: Black
- Material - Metal: Tin Brass
- Material - Resin: Nylon
- Voltage - Maximum: 350V AC/DC
- Current - Maximum per Contact: 4.5A
- Wire Insulation Diameter: 1.35-1.70mm
- Wire Size AWG: 20
- Gender: Hermaphroditic
- Lock to Mating Part: Yes
- Packaging: Bag
- Application: Power, Wire-to-Wire
- Reference Drawing: 369220600-000
- RoHS Compliant: Yes
- UL Rating: UL 1061
- Material Plating Mating: Tin
- Material Plating Termination: Tin
Buy the Buy Molex Wire-to-Wire Part Number 369220601 Online
Order the Molex Wire-to-Wire Connector 369220601 online today for a dependable, easy-to-install power and signal transfer solution. Designed with a 3.00mm pitch, six circuits, and a 100mm cable length, it's ideal for compact electronic assemblies. Crafted with durable tin-plated brass and tough nylon housing, it ensures long-lasting performance under demanding conditions. UL 1061 compliant, rated for 4.5A at 350V, and featuring hermaphroditic connectors for simplified mating, this assembly provides secure connections in industrial, medical, and electronics applications. Purchase now and enjoy seamless installation and excellent reliability.
Buy Molex 369220601 now and experience unmatched reliability and high-performance power connections for electronic systems.
