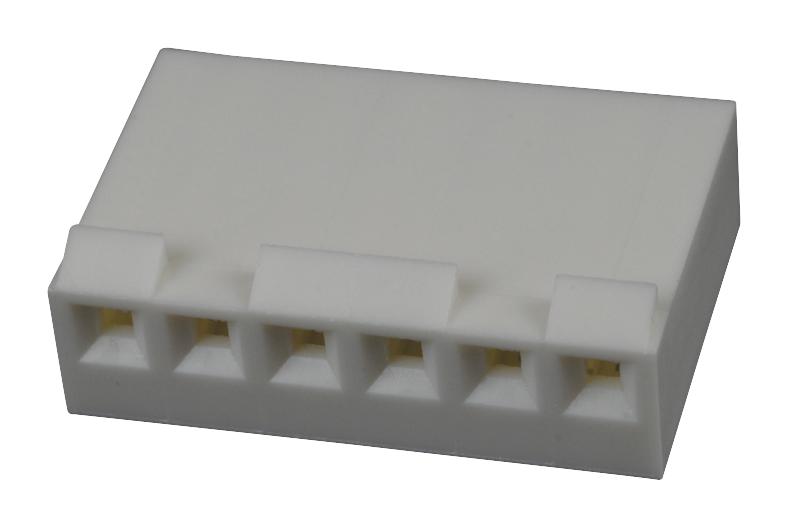

MOLEX 09508141 Multi-circuit Connector Housing
This is a multi-circuit connector housing designed for 2 to 14 circuits, molded from flame-retardant N-GLASS FILLED POLYESTER with UL94V-0 rating. It features precise dimensions for compatibility with various headers and terminal plugs, including center headers and square or round pins. The housing accepts standard terminal numbers such as 18-24 AWG, 22-26 AWG, and 18-20 AWG, with maximum insulation diameters ranging from 0.065 to 0.110 inches. It conforms to Class B cosmetic specifications and includes optional voids, ramps, and polarizing ribs, ensuring reliable connections in diverse applications.
MOLEX 09508141 Multi-circuit Connector Housing Specifications:
- Material: N-GLASS FILLED POLYESTER, UL94V-0
- Color: Natural (molded)
- Flammability Rating: UL 94V-0
- Compatible with headers and terminals: 18-24 AWG, 22-26 AWG, 18-20 AWG
- Maximum insulation diameter: 0.065 to 0.110 inches
- Number of circuits: 2 to 14
- Dimensions vary by circuit count, with reference dimensions of 3.96 inches and 7.92 inches for length and width respectively
- Includes optional voids, ramps, and polarization features for reliable mating
- Design conforms to Class B cosmetic requirements
- General tolerances: ±0.005 mm or inches as specified
- Compatible with bulk packaging for manufacturing assembly
- Dimensions include precise measurements for groove presence, housing acceptance, and terminal fits, ensuring consistent assembly and connection reliability
Buy the Molex Series 7-14 Circuit Connector Housing: 09508141
Purchase the Molex Series 7-14 Circuit Connector Housing online today and ensure precise, reliable connections for your electronic assemblies. Designed from flame-retardant N-GLASS polyester, it supports 2 to 14 circuits with compatibility for various terminal sizes including 18-24 AWG, 22-26 AWG, and 18-20 AWG. Featuring optional voids, ramps, and polarization ribs, this housing offers robust mechanical stability and easy assembly. Ideal for manufacturing and maintenance environments, it guarantees high-performance, compliance with cosmetic standards, and efficient integration with standard headers and terminals. Order now for dependable, high-quality connectivity solutions.
Order your Molex Series 7-14 Circuit Connector Housing today and enhance your project's connection reliability with high-quality molded housing solutions.
