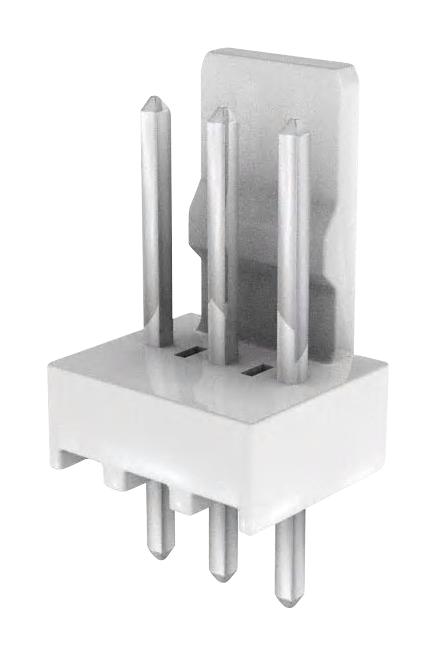

MOLEX 38006293 PCB Header
The Molex KK 254 Header is a vertical wire-to-board connector featuring three circuits with friction lock, made of tin-plated brass and nylon. It supports up to 4.0A per contact and a maximum voltage of 500V, designed for reliable electronic connections in various applications. This PCB header is RoHS compliant, halogen-free, and rated for 94V-0 flammability. Its small profile includes a 10.00mm vertical orientation, 2.54mm pitch, and rugged construction suitable for demanding manufacturing environments, ensuring long-term durability and precise connectivity.
MOLEX 38006293 PCB Header Specifications:
- Number of Circuits (Loaded): 3
- Number of Circuits (Maximum): 3
- Color - Resin: Natural (White)
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 0.480 grams
- Orientation: Vertical
- Pitch - Mating Interface: 2.54mm
- Pitch - Termination Interface: 2.54mm
- Contact Current Capacity: 4.0A
- Maximum Voltage: 500V
- Operating Temperature Range: Not specified
- Durability (Mating Cycles Max): Not specified
- Temperature Range - Operating: Not specified
- Lock to Mating Part: Yes
- Guide to Mating Part: Yes
Buy the Molex Series KK 254 PCB Header: 0038006293
Purchase the Molex KK 254 Header online today for your electronic assembly needs. Designed with a 2.54mm pitch, three circuits, and a friction lock, it ensures secure and durable connections. Made from high-quality tin-plated brass and nylon, it supports up to 4A and 500V, making it suitable for various applications. The vertical orientation and RoHS compliance guarantee reliable performance and environmental safety. Order now to enhance your electronics with a trusted, durable header designed for high-demand environments.
Get Molex KK 254 Header today—built for reliable, long-lasting electronic connections and easy assembly in industrial and consumer electronics.
Frequently Asked Questions
Where can I buy MOLEX 38006293?
You can click on the BUY or RFQ button to purchase 38006293 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 38006293?
You can download the 38006293 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 38006293?
MOLEX
